8034987

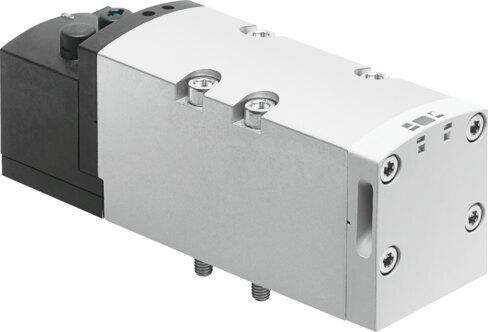

Name: Festo 8034987 Air solenoid valve VSVA-B-M52-MZ-D2-1T1L
Brand: Festo

Air solenoid valve VSVA-B-M52-MZ-D2-1T1L

The Festo 8034987 is a 5/2-way monostable industrial component featuring electrical actuation, a piston gate valve structural design, and soft sealing with a mechanical spring reset method. It delivers a normal nominal flow rate of 2900 l/min across an operating pressure range of -0.9 bar to 10 bar, powered by 24V DC operating voltage with a 52 mm width and IP65 / NEMA 4 degree of protection. This ISO 5599-2 compliant unit includes a covered manual override, adjustable exhaust air function via throttle plate or individual sub-base, and carries c UL us, KC-EMV, and CE markings. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8034987
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8034987.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 52 mm
Normal nominal ow rate (normalized to DIN 1343): 2900 l/min
Pneumatic working port: Sub-base, size 2 according to ISO 5599-2 | G1/2
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive
Degree of protection: IP65 | NEMA 4
Width dimension: 59 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-2
Manual override: Covered
Type of control: Piloted
Pilot air supply port: External
Flow direction: Any
Signal status display: LED
Pilot pressure MPa: 0.3 MPa...1 MPa
Pilot pressure: 3 bar...10 bar
Flow rate of pneumatic valve: 4000 l/min
Flow rate of pneumatic valve on individual sub-base: 3400 l/min
Optimized ow rate of pneumatic valve pneumatically concatenated ow: 2900 l/min

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8034987. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
