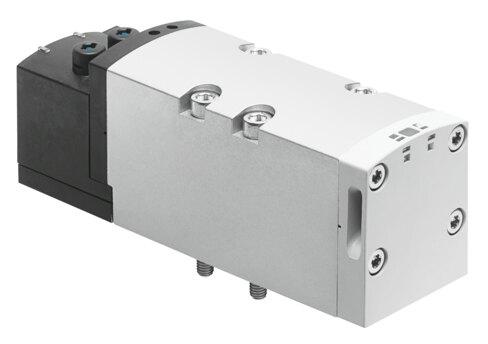

Reference imageConfirm configuration by manufacturer part number.
Festo
8034994
Air solenoid valve VSVA-B-T32F-AZ-D2-1T1L
The Festo 8034994 is an electrical 2x3/2 open monostable industrial component featuring a piston gate valve structural design and a piloted type of control with an external pilot air supply port. Built with a 52 mm width dimension, soft sealing principle, and adjustable exhaust air function via a throttle plate or individual sub-base, this unit operates at 24V DC within an operating pressure range of 0.3 MPa to 1 MPa and achieves a normal nominal flow rate of 2400 l/min. It complies with ISO 5599-2 standards, includes a covered manual override, and carries IP65 and NEMA 4 degrees of protection alongside c UL us, KC-EMV, and CE markings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8034994
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8034994.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Width
- 52 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2400 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-2 | G1/2
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Degree of protection
- IP65 | NEMA 4
- Width dimension
- 59 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-2
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- reversible only
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 3000 l/min
- Flow rate of pneumatic valve on individual sub-base
- 2600 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2400 l/min
- Switching time off
- 30 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8034994. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
