8035190

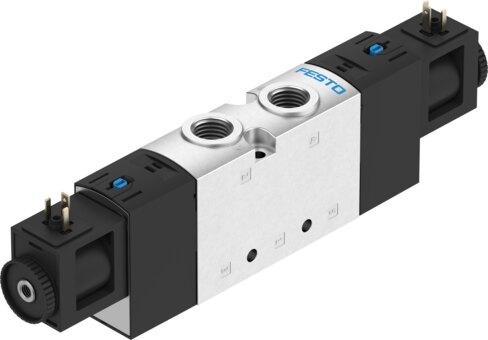

Name: Festo 8035190 Air solenoid valve VUVS-LT25-B52-D-G14-F8-1C1
Brand: Festo

Air solenoid valve VUVS-LT25-B52-D-G14-F8-1C1

The Festo 8035190 is a 26.5 mm electrical 5/2-way bistable industrial component featuring a plate seat structural design and a normal nominal flow rate of 1000 l/min normalized to DIN 1343. This piloted valve utilizes internal pilot air supply, a soft sealing principle, a negative overlap lap, a non-reversible flow direction, and an adjustable exhaust air function with a b-value of 0.2. It operates at 24V DC with an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), incorporates G1/4 pneumatic working ports, and includes both detenting and non-detenting manual override capabilities. Certified as c UL us - recognized (OL) and rated IP65 with a plug socket per IEC 60529, this unit supports any mounting position and has a nominal width of 6.6 mm. Submit the exact part number, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8035190
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8035190.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Valve size: 26.5 mm
Normal nominal ow rate (normalized to DIN 1343): 1000 l/min
Pneumatic working port: G1/4
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Plate seat
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 6.6 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Negative overlap
b-value: 0.2
C value: 4.6 l/sbar
Changeover time: 10 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 2000 µs
Max. negative test pulse on 1 signal: 3600 µs
Coil characteristics: 24 V DC: 3.3 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8035190. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
