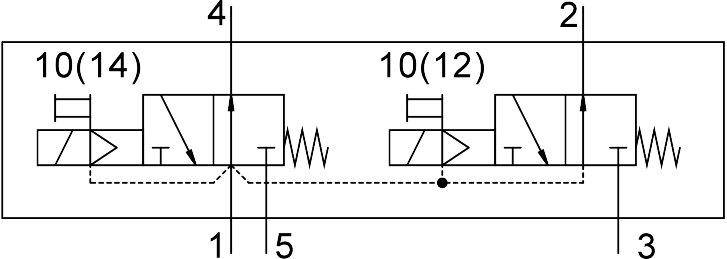

Reference imageConfirm configuration by manufacturer part number.
Festo
8035206
Air solenoid valve VUVS-LT25-T32U-MD-G14-F8-1B2
The Festo 8035206 is an electrical industrial component featuring a 2x3/2 open monostable valve function, a 26.5 mm valve size, and a normal nominal flow rate of 1000 l/min normalized to DIN 1343. This piloted plate seat valve operates at 24V DC with an operating pressure ranging from 0.25 MPa to 1 MPa (2.5 bar to 10 bar) and includes internal pilot air supply, G1/4 pneumatic working ports, and adjustable exhaust air functions. Certified as c UL us - recognized (OL) and rated to IP65 with a plug socket per IEC 60529, the unit utilizes a soft sealing principle, mechanical spring reset, and features both detenting and non-detenting manual override options with a negative overlap lap. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035206
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035206.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.3
- C value
- 4.4 l/sbar
- Switching time off
- 25 ms
- On switching time
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Coil characteristics
- 24 V DC: 3.3 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8035206. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
