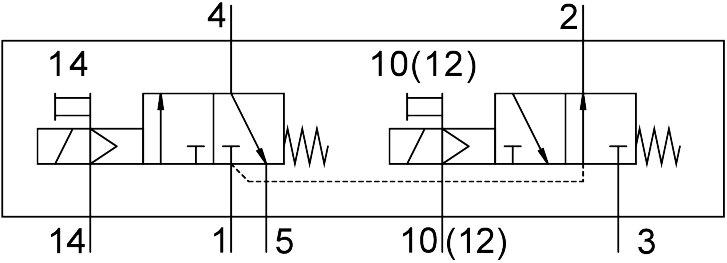

Reference imageConfirm configuration by manufacturer part number.
Festo
8035212
Air solenoid valve VUVS-LT25-T32H-MZD-G14-F8-1C1
The Festo part number 8035212 is a 26.5 mm electrical industrial component featuring a 2x3/2 open/closed monostable valve function, piloted control with external pilot air supply, and a plate seat structural design with a soft sealing principle. It delivers a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports across an operating pressure range of -0.09 MPa to 1 MPa, powered by 24V DC and protected to IP65 with a plug socket per IEC 60529. This c UL us recognized component includes adjustable exhaust air, a mechanical spring reset method, negative overlap lap, non-reversible flow direction, any mounting position, and both detenting and non-detenting manual override capabilities. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035212
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035212.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.4
- C value
- 4.4 l/sbar
- Switching time off
- 25 ms
- On switching time
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8035212. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
