Festo
8035229

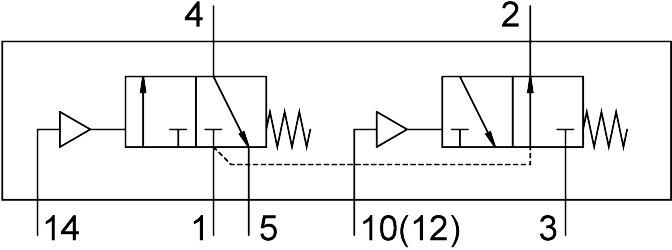

Pneumatic valve VUWS-LT25-T32H-M-N14
The Festo part number 8035229 is a 26.5 mm pneumatic industrial component featuring a directly controlled 2x3/2 open/closed monostable valve function with a plate seat structural design and soft sealing principle. It delivers a normal nominal flow rate of 1000 l/min through 1/4 NPT pneumatic working ports, operating across a pressure range of -0.09 MPa to 1 MPa with an adjustable exhaust air function and mechanical spring reset. Certified as c UL us recognized (OL), this unit operates with internal pilot air supply, a nominal width of 6.9 mm, and a pilot pressure of 0.25 MPa to 1 MPa in any mounting position. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035229
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035229.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Pneumatic
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- 1/4 NPT
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Nominal width
- 6.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- Switching time off
- 30 ms
- On switching time
- 7 ms
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8035229. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
