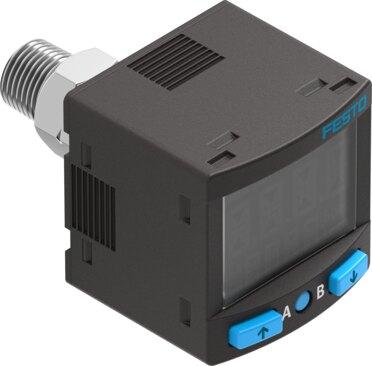

Reference imageConfirm configuration by manufacturer part number.
Festo
8035537
Pressure sensor SPAN-B2R-R18M-PNLK-PNVBA-L1
The Festo 8035537 is an industrial piezoresistive pressure sensor engineered to measure relative pressure within a range of -0.1 to 0.1 MPa (-1 to 1 bar, -14.5 to 14.5 psi) with an accuracy of 1.5 %FS and a repetition accuracy of 0.3 %FS. This component operates with compressed air according to ISO 8573-1:2010 [7:4:4] or inert gases at temperatures from 0 °C to 50 °C, featuring a max overload pressure of 5 bar and dual switchable PNP or 2 NPN switching outputs supporting window comparator, threshold value comparator, and auto difference monitoring functions. It holds RCM compliance, c UL us - Listed (OL) certification via UL E322346, RoHS compliance, and carries CE and UKCA markings for EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035537
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035537.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E322346
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- -0.1 MPa | -1 bar | -14.5 psi
- Pressure measuring range end value
- 0.1 MPa | 1 bar | 14.5 psi
- Max. overload pressure
- 5 bar
- Overload pressure
- 0.5 MPa | 5 bar | 72.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Window comparator | Threshold value comparator | Auto difference monitoring
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Analog output
- 0 - 10 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8035537. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
