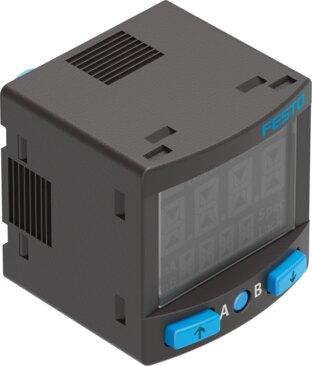

Reference imageConfirm configuration by manufacturer part number.
Festo
8035552
Pressure sensor SPAN-P10R-Q4-PN-PN-L1
The Festo 8035552 is a piezoresistive pressure sensor designed to measure relative pressure across a range of 0 to 1 MPa, 0 to 10 bar, or 0 to 145 psi, with a maximum overload pressure of 15 bar. This industrial component operates with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases within a medium and ambient temperature range of 0 °C to 50 °C, featuring an accuracy of 1.5 %FS, a repetition accuracy of 0.3 %FS, and a temperature coefficient of 0.05 %FS/K. It includes two switchable PNP or two NPN switching outputs supporting window comparator, threshold value comparator, and auto difference monitoring functions, alongside RCM compliance, c UL us listing, and CE and UKCA markings under EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035552
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035552.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E322346
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Max. overload pressure
- 15 bar
- Overload pressure
- 1.5 MPa | 15 bar | 217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Window comparator | Threshold value comparator | Auto difference monitoring
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Short-circuit protection
- Yes
