8035777

Name: Festo 8035777 Distributor NEDY-L2R1-V1-M12G5-U-0.3L-M8G4-2.5R
Brand: Festo

Distributor NEDY-L2R1-V1-M12G5-U-0.3L-M8G4-2.5R

The Festo 8035777 is an industrial Y-distributor with cables at both ends, featuring a 2 to 1 distributor type and a product weight of 113 g. Built to EN 61076-2-101 and EN 61076-2-104 norms, this component includes a label holder, supports mounting via through-hole for an M2 screw or accessories, and meets ATEX Zone 2 and Zone 22 explosion prevention and protection requirements. Electrical connection 1 serves the control side with a straight M8x1 A-coded 4-pin round plug containing 4 occupied wires, while electrical connection 2 provides the field device end with two straight M12x1 A-coded 5-pin round sockets. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8035777
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8035777.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101 | EN 61076-2-104
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Structural design: Y-distributor with cables at both ends
Distributor type: 2 to 1
Cable designation: With label holder
Type of mounting: With through-hole for M2 screw | With accessories
Product weight: 113 g
Electrical connection 1, function: Control side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 4
Electrical connection 2, function: Field device end
Electrical connection 2, design: Round
Electrical connection 2, connection type: 2x socket
Electrical connection 2, cable outlet: Straight

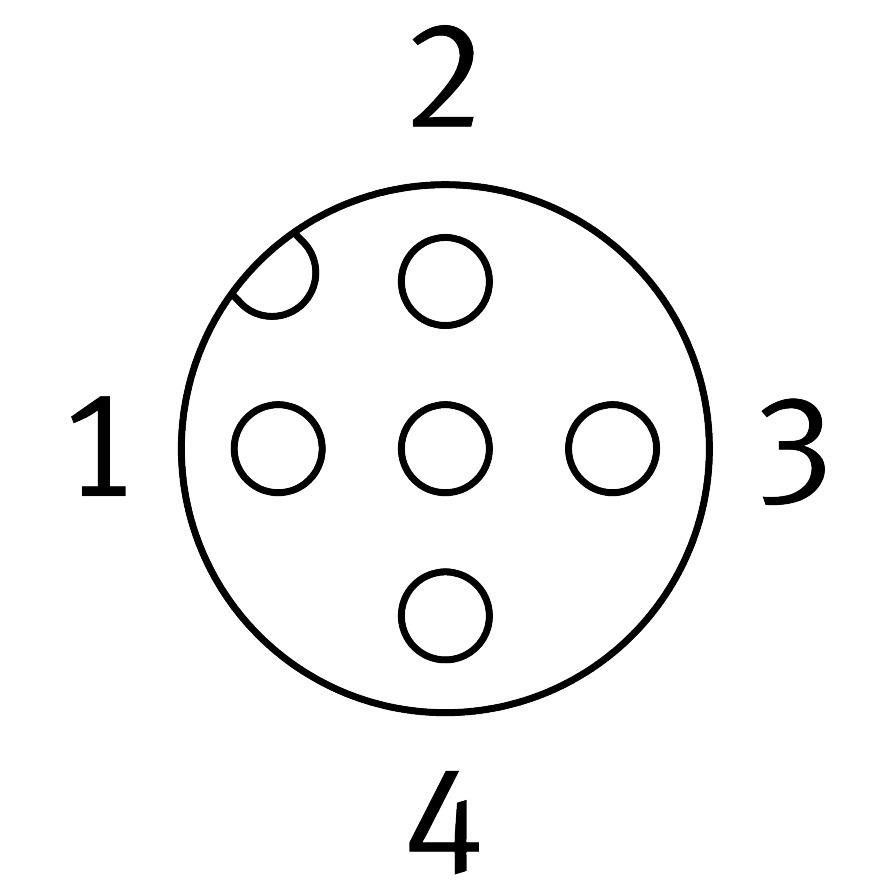

Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 5
Electrical connection 2, occupied pins/wires: 4
DC operating voltage range: 0 V...30 V
Operating voltage range AC: 0 V...30 V
Current rating at 40° C: 3 A
Surge resistance: 0.8 kV
Cable length 1: 2.5 m
Cable length 2: 0.3 m
