Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8035779
Distributor NEDY-L2R1-V1-B2W3L-U-0.3L-M12G4-2.5R
The Festo 8035779 is a 124 g industrial Y-distributor designed with cables at both ends, featuring a 2 to 1 distributor type built to EN 61076-2-101 norms. It includes a yellow LED signal status display, a cable designation with a label holder, and mounting via a through-hole for an M2 screw or accessories. Electrical connection 1 on the control side utilizes a straight, 4-pin (3 occupied) M12x1 A-coded round plug with a rotatable screw-type lock featuring a hexagon AF13 and vertical knurling. Electrical connection 2 on the field device side incorporates two angled square ports using connection diagram form B as per industrial standard, 11 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035779
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035779.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101
- Structural design
- Y-distributor with cables at both ends
- Distributor type
- 2 to 1
- Signal status display
- Yellow LED
- Cable designation
- With label holder
- Type of mounting
- With through-hole for M2 screw | With accessories
- Product weight
- 124 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

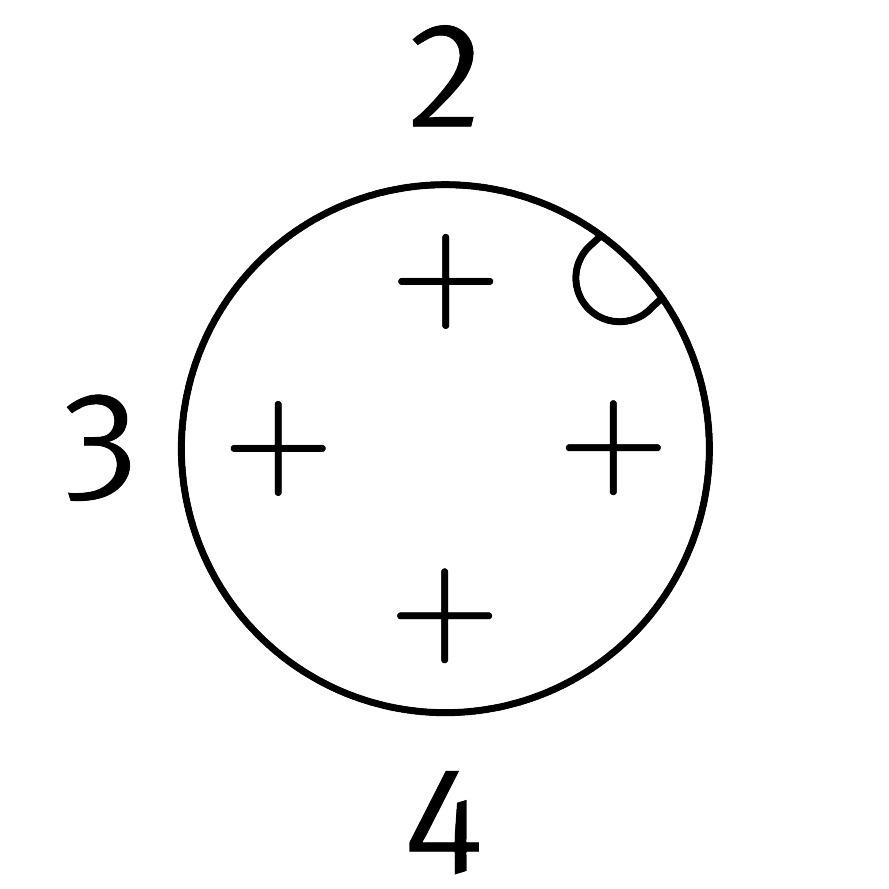

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Field device side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- 2x port
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- Connection diagram form B as per industrial standard, 11 mm
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 2
- Electrical connection 2, type of mounting
- on air solenoid valve with M3 central screw
- DC operating voltage range
- 20.4 V...27.6 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Cable length 1
- 2.5 m
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8035779. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
