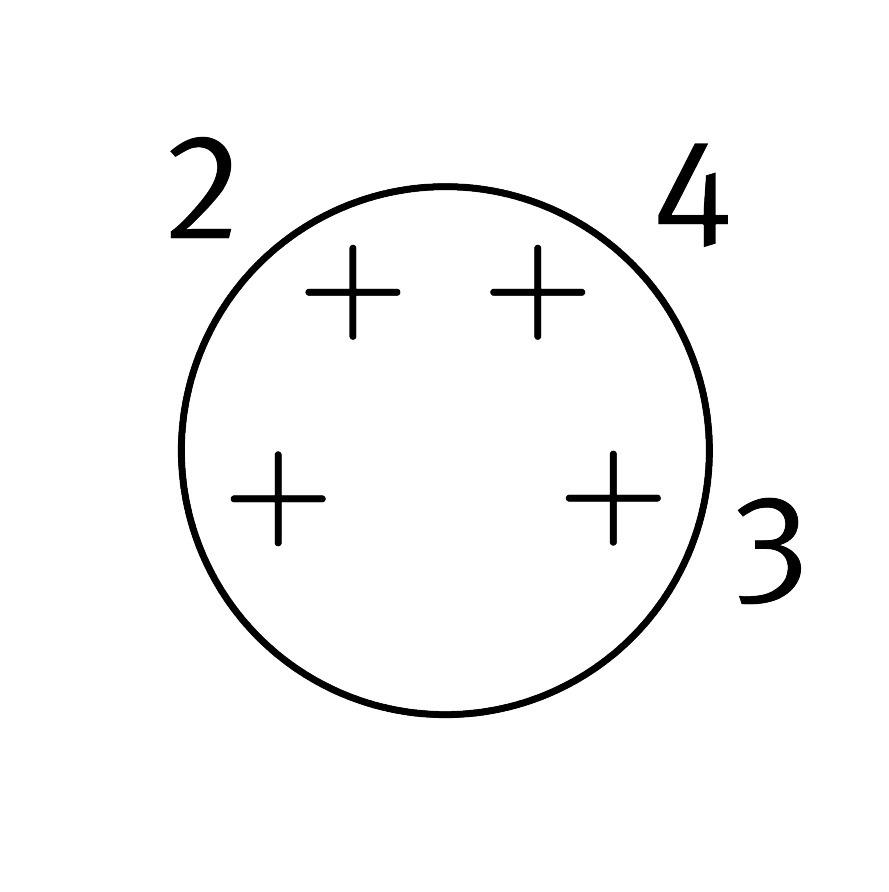

Reference imageConfirm configuration by manufacturer part number.
Festo
8035781
Distributor NEDY-L2R1-V1-B2W3L-U-0.3L-M8G4-2.5R
The Festo 8035781 is an industrial Y-distributor with cables at both ends, built as a 2-to-1 distributor based on the EN 61076-2-104 norm and weighing 116 g. It features a straight M8x1 A-coded 4-pin plug control side connection with 3 occupied pins and a yellow LED signal status display, alongside an angled 3-pin field device end featuring two sockets in connection diagram form B. Designed with a label holder and a through-hole for M2 screw mounting or use with accessories, the unit integrates electrical connections 1 and 2 respectively. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035781
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035781.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-104
- Structural design
- Y-distributor with cables at both ends
- Distributor type
- 2 to 1
- Signal status display
- LED yellow
- Cable designation
- With label holder
- Type of mounting
- With through-hole for M2 screw | With accessories
- Product weight
- 116 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 2, function
- Field device end
- Electrical connection 2, design
- Rectangular
- Electrical connection 2, connection type
- 2x socket
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- Connection diagram form B as per industrial standard, 11 mm
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 20.4 V...27.6 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 0.8 kV
- Cable length 1
- 2.5 m
- Cable length 2
- 0.3 m
- Cable characteristic
- Suitable for energy chains/robot applications
