Name: Festo 8035782 Distributor NEDY-L2R1-V1-B2W3L-U-0.3L-M8G4-5R
Brand: Festo

Distributor NEDY-L2R1-V1-B2W3L-U-0.3L-M8G4-5R

This Festo industrial component, part number 8035782, is a Y-distributor with cables at both ends adhering to the EN 61076-2-104 norm. It features a 2 to 1 distributor type with a yellow LED signal status display, a cable designation with a label holder, and a product weight of 165 g. The mounting configuration utilizes a through-hole for an M2 screw with accessories. Electrical connection 1 on the control side is a straight, round 4-pin plug with 3 occupied pins using M8x1 A-coded connection technology according to EN 61076-2-104. Electrical connection 2 at the field device end consists of two angled, rectangular sockets utilizing connection diagram form B per industrial standard with 3 pins. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8035782
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8035782.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-104
Structural design: Y-distributor with cables at both ends
Distributor type: 2 to 1
Signal status display: LED yellow
Cable designation: With label holder
Type of mounting: With through-hole for M2 screw | With accessories
Product weight: 165 g
Electrical connection 1, function: Control side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight

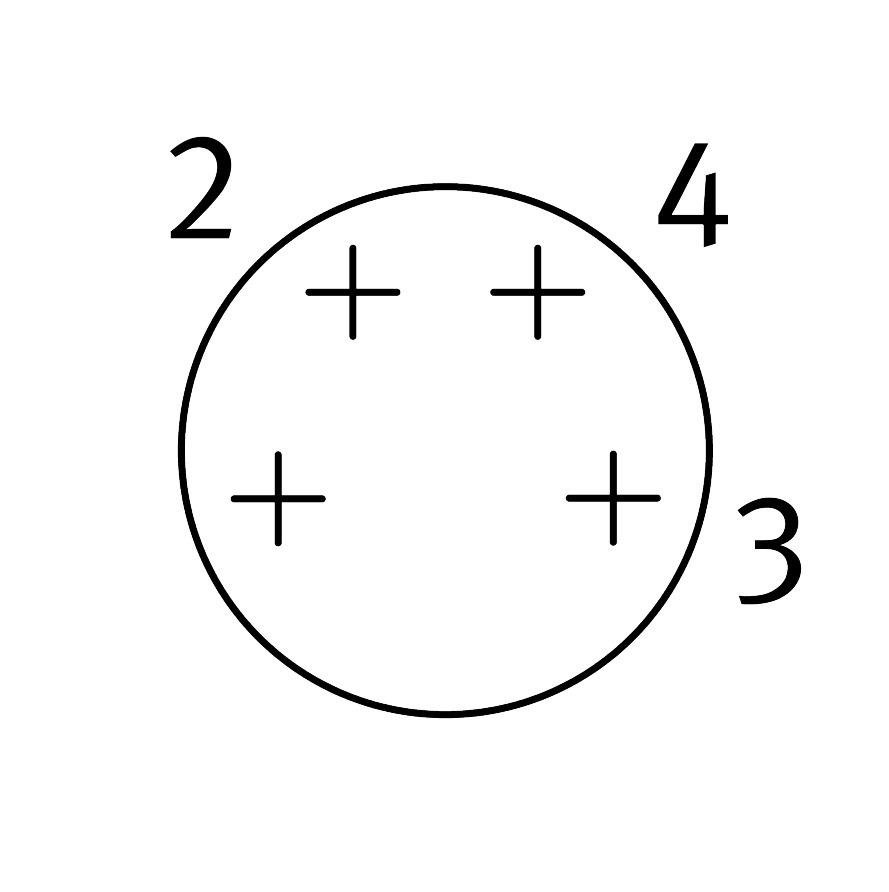

Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 3
Electrical connection 2, function: Field device end
Electrical connection 2, design: Rectangular
Electrical connection 2, connection type: 2x socket
Electrical connection 2, cable outlet: Angled
Electrical connection 2, connection technology: Connection diagram form B as per industrial standard, 11 mm
Electrical connection 2, number of pins/wires: 3
Electrical connection 2, occupied pins/wires: 2
DC operating voltage range: 20.4 V...27.6 V
Current rating at 40° C: 3 A
Surge resistance: 0.8 kV
Cable length 1: 5 m
Cable length 2: 0.3 m
Cable characteristic: Suitable for energy chains/robot applications
