Festo
8035784
Distributor NEDY-L2R1-V1-C1W4L-U-0.3L-M12G4-5R
The Festo 8035784 is an industrial Y-distributor featuring a 2-to-1 structural design with cables at both ends and a yellow LED signal status display. It incorporates an M12x1 A-coded 4-pin round control-side plug with 3 occupied wires and a connection diagram type C field-device side with two angled square ports based on EN 175301-803 and EN 61076-2-101 norms. Weighing 153 g, this component includes a label holder, through-hole mounting for an M2 screw, and a rotatable screw-type lock with hexagon AF13 and vertical knurling. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035784
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035784.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 175301-803 | EN 61076-2-101
- Structural design
- Y-distributor with cables at both ends
- Distributor type
- 2 to 1
- Signal status display
- Yellow LED
- Cable designation
- With label holder
- Type of mounting
- With through-hole for M2 screw | With accessories
- Product weight
- 153 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

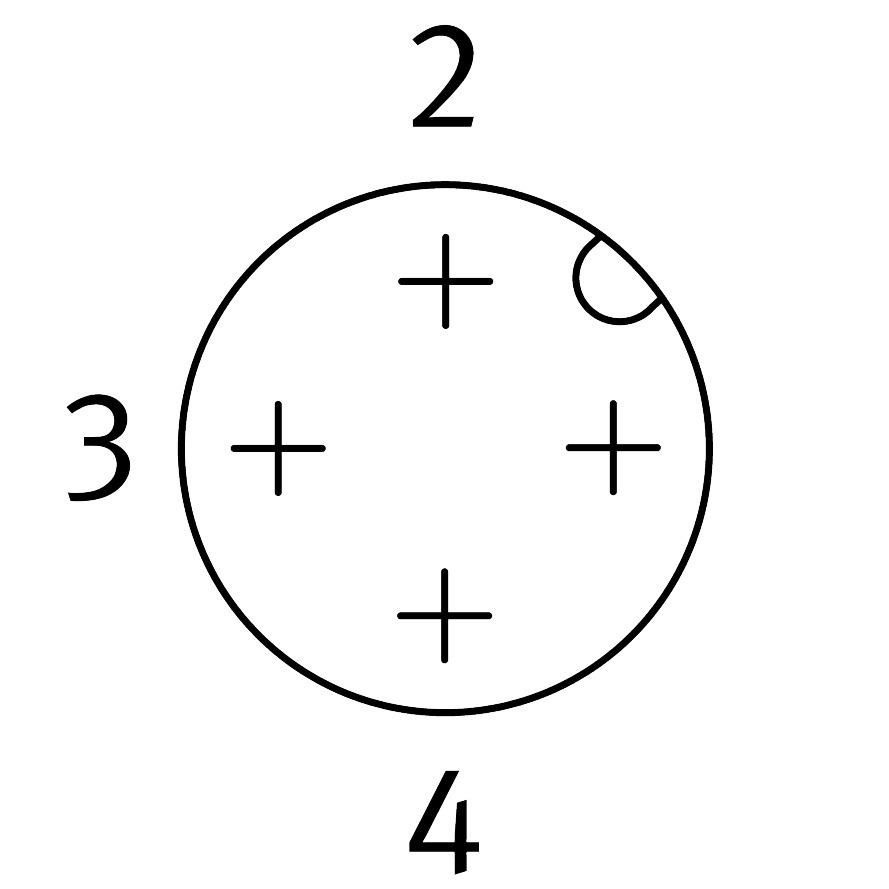

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Field device side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- 2x port
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- Connection diagram type C as per EN 175301-803
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 2
- Electrical connection 2, type of mounting
- on solenoid valve with M2.5 central screw
- DC operating voltage range
- 20.4 V...27.6 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Cable length 1
- 5 m
