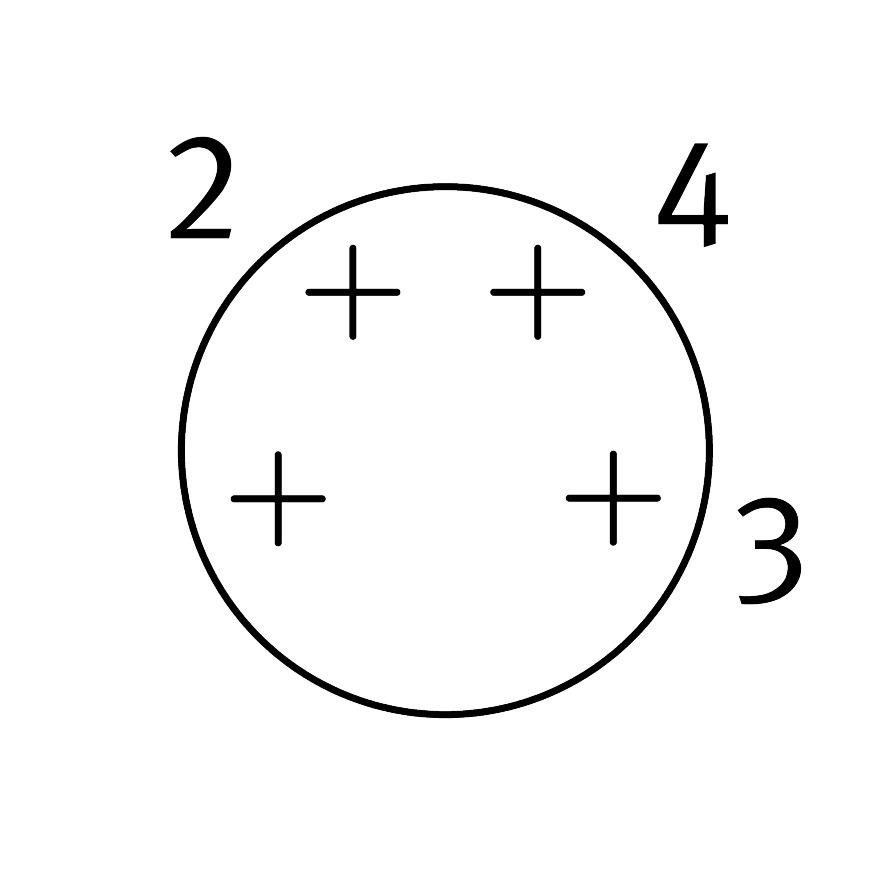

Reference imageConfirm configuration by manufacturer part number.
Festo
8035789
Distributor NEDY-L2R1-V1-Z4W2Z-U-0.3L-M8G4-2.5R
The Festo 8035789 is a Y-distributor industrial component adhering to the EN 61076-2-104 norm and carrying the RCM compliance mark. Weighing 82 g, this 2 to 1 distributor features a straight M8x1 A-coded 4-pin plug control side with 3 occupied pins, two angled rectangular sockets at the field device end, a yellow LED signal status display, holding current reduction, and a cable designation with a label holder. Mounting is achieved via a through-hole for an M2 screw or with accessories. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8035789
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8035789.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-104
- Certication
- RCM compliance mark
- Structural design
- Y-distributor with cables at both ends
- Distributor type
- 2 to 1
- Signal status display
- LED yellow
- Additional functions
- Holding current reduction
- Cable designation
- With label holder
- Type of mounting
- With through-hole for M2 screw | With accessories
- Product weight
- 82 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 2, function
- Field device end
- Electrical connection 2, design
- Rectangular
- Electrical connection 2, connection type
- 2x socket
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- Connection diagram ZC, metric screw
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 20.4 V...27.6 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 0.8 kV
- Cable length 1
- 2.5 m
- Cable length 2
- 0.3 m
- Cable characteristic
- Suitable for energy chains/robot applications
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8035789. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
