8035791

Name: Festo 8035791 Distributor NEDY-L2R1-V1-A1W4L-U-0.3L-M12G4-2.5R
Brand: Festo

Distributor NEDY-L2R1-V1-A1W4L-U-0.3L-M12G4-2.5R

The Festo part number 8035791 is an industrial component featuring a Y-distributor structural design with cables at both ends and a 2 to 1 distributor type, built on EN 175301-803 and EN 61076-2-101 norms with a product weight of 123 g. It incorporates a yellow LED signal status display, a cable designation with a label holder, and mounting via a through-hole for an M2 screw or included accessories. Electrical connection 1 functions on the control side with a straight, round plug design utilizing M12x1 A-coded connection technology with 4 pins (3 occupied) and a rotatable screw-type lock with hexagon AF13 and vertical knurling. Electrical connection 2 functions on the field device side with two angled, square ports using connection diagram form A. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8035791
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8035791.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 175301-803 | EN 61076-2-101
Structural design: Y-distributor with cables at both ends
Distributor type: 2 to 1
Signal status display: Yellow LED
Cable designation: With label holder
Type of mounting: With through-hole for M2 screw | With accessories
Product weight: 123 g
Electrical connection 1, function: Control side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight

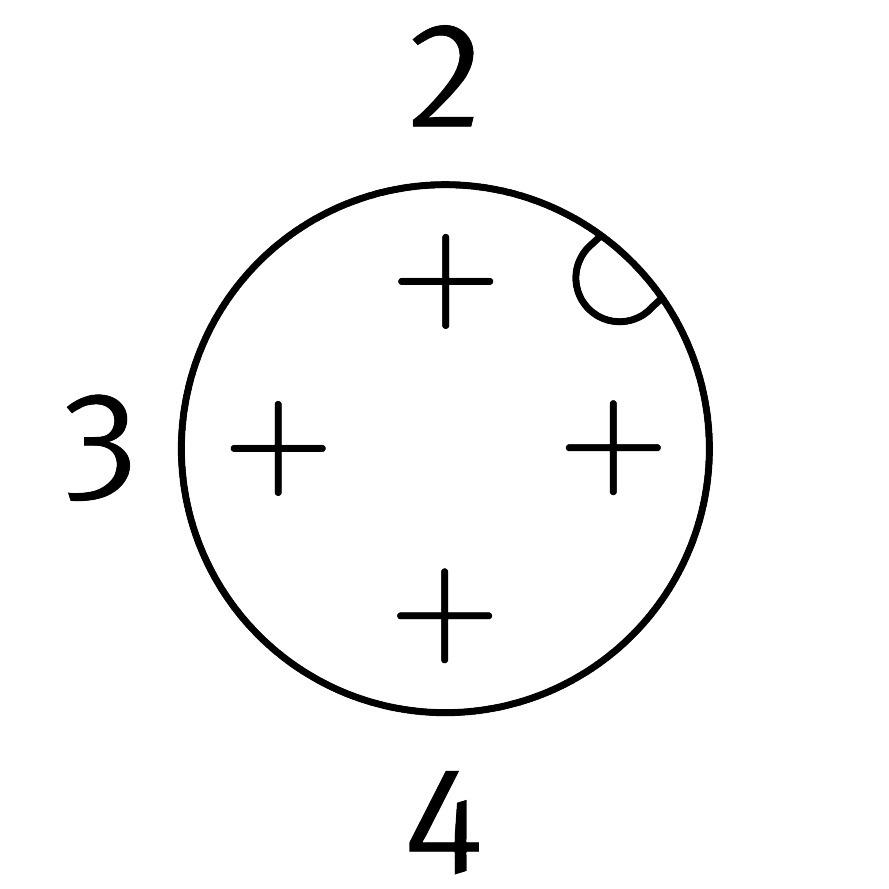

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 2, function: Field device side
Electrical connection 2, design: Square
Electrical connection 2, connection type: 2x port
Electrical connection 2, cable outlet: Angled
Electrical connection 2, connection technology: Connection diagram form A as per EN 175301-803
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, occupied pins/wires: 2
Electrical connection 2, type of mounting: on air solenoid valve with M3 central screw
DC operating voltage range: 20.4 V...27.6 V
Current rating at 40° C: 4 A
Surge resistance: 0.8 kV
Cable length 1: 2.5 m
