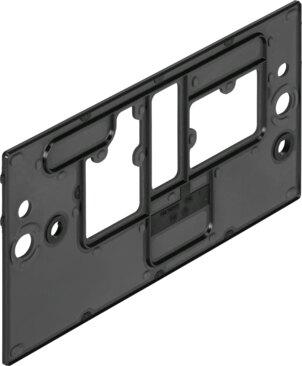

Name: Festo 8036068 Duct separation VABD-S1-1-P7-C
Brand: Festo

Duct separation VABD-S1-1-P7-C

This Festo industrial component, part number 8036068, is built on the ISO 5599-1 norm with a steel and NBR separator plate and a product weight of 60 grams. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), supports vacuum applications, and functions with compressed air conforming to ISO 8573-1:2010 [7:4:4] for both operating and pilot media, where oil lubrication is possible and required for continued use. The unit features a corrosion resistance class of CRC 0 with no corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS-compliant materials, functioning across a medium and ambient temperature range of -10 °C to 50 °C and a storage temperature of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8036068
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8036068.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: ISO 5599-1
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Suitability for vacuum: Yes
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...50 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...50 °C
Product weight: 60 g
Note on materials: RoHS compliant
Separator plate material: Steel | NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8036068. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
