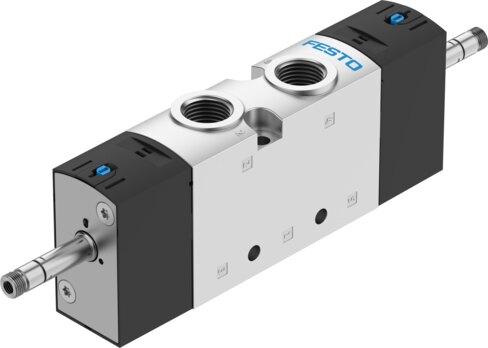

Reference imageConfirm configuration by manufacturer part number.
Festo
8036693
Air solenoid valve VUVS-LT30-B52-D-G38-F8
The Festo 8036693 is a bistable 5/2-way electrical industrial component featuring a 31 mm valve size and a plate seat structural design with an 8.7 mm nominal width. It delivers a normal nominal flow rate of 1800 l/min through G3/8 pneumatic working ports, operating via a piloted control mechanism with an internal pilot air supply port and a soft sealing principle across an operating pressure range of 0.15 MPa to 1 MPa. Certified as c UL us recognized (OL), this unit incorporates adjustable exhaust air function, a negative overlap lap, detenting and non-detenting manual override, and operates on a voltage supplied via a separately ordered solenoid coil in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8036693
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8036693.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1800 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Structural design
- Plate seat
- Certication
- c UL us - recognized (OL)
- Nominal width
- 8.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.3
- C value
- 9.9 l/sbar
- Changeover time
- 13 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
