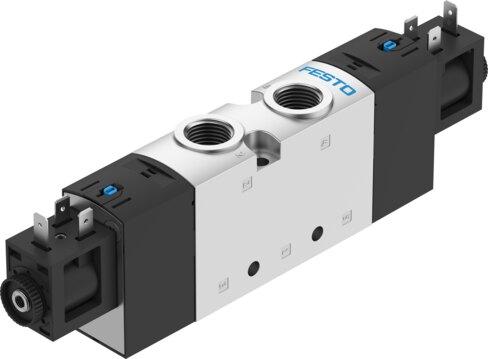

Name: Festo 8036697 Air solenoid valve VUVS-LT30-B52-D-G38-F8-1B2
Brand: Festo

Air solenoid valve VUVS-LT30-B52-D-G38-F8-1B2

The Festo part number 8036697 is an electrical 5/2-way bistable industrial component featuring a 31 mm valve size, a plate seat structural design, and a soft sealing principle with negative overlap lap. It delivers a normal nominal flow rate of 1800 l/min through G3/8 pneumatic working ports at an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and a 24V DC operating voltage. This piloted unit includes internal pilot air supply, an 8.7 mm nominal width, adjustable exhaust air function, non-reversible flow direction, detenting and non-detenting manual override, and any mounting position, while achieving an IP65 degree of protection with a plug socket per IEC 60529 and c UL us recognition (OL). Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8036697
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8036697.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Valve size: 31 mm
Normal nominal ow rate (normalized to DIN 1343): 1800 l/min
Pneumatic working port: G3/8
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Plate seat
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 8.7 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Negative overlap
b-value: 0.3
C value: 9.9 l/sbar
Changeover time: 13 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 2000 µs
Max. negative test pulse on 1 signal: 3600 µs
Coil characteristics: 24 V DC: 3.3 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8036697. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
