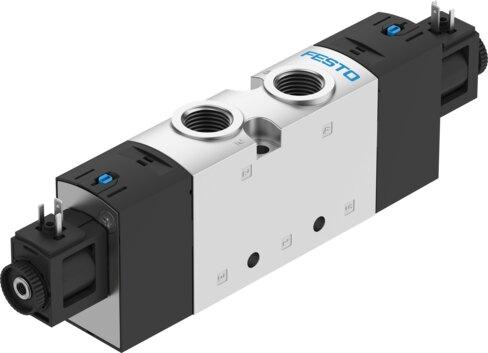

Reference imageConfirm configuration by manufacturer part number.
Festo
8036702
Air solenoid valve VUVS-LT30-T32C-MD-G38-F8-1C1
The Festo 8036702 is an electrical industrial component featuring a 31 mm valve size, a 2x3/2 closed monostable valve function, and a plate seat structural design with a soft sealing principle. It operates at 24V DC within an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), delivering a normal nominal flow rate of 1600 l/min through G3/8 pneumatic working ports. This piloted unit includes a mechanical spring reset, internal pilot air supply, adjustable exhaust air function, and a nominal width of 7.9 mm with a negative overlap lap. Protected to IP65 with a plug socket per IEC 60529 and c UL us-recognized (OL) certified, it supports any mounting position and features both detenting and non-detenting manual overrides. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8036702
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8036702.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 7.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.4
- C value
- 6 l/sbar
- Switching time off
- 33 ms
- On switching time
- 13 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Coil characteristics
- 24 V DC: 3.3 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8036702. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
