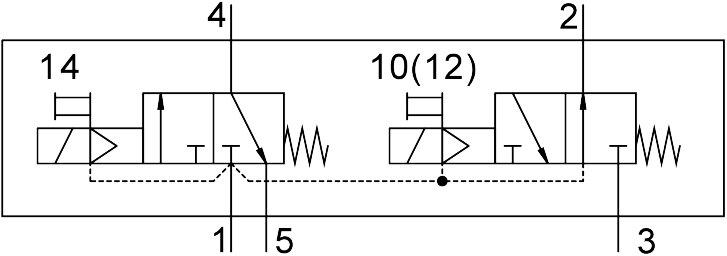

Reference imageConfirm configuration by manufacturer part number.
Festo
8036716
Air solenoid valve VUVS-LT30-T32H-MD-G38-F8-1C1
The Festo 8036716 is an electrical industrial component featuring a 31 mm plate seat valve with a 2x3/2 open/closed monostable function, internal pilot air supply port, and non-reversible flow direction. Operating at 24V DC within a 0.25 MPa to 1 MPa pressure range, this c UL us-recognized part delivers a normal nominal flow rate of 1600 l/min through G3/8 pneumatic working ports. It includes a mechanical spring reset, soft sealing principle, adjustable exhaust air function, and IP65 protection when used with a plug socket. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8036716
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8036716.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 7.8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.3
- C value
- 6.7 l/sbar
- Switching time off
- 37 ms
- On switching time
- 13 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Coil characteristics
- 24 V DC: 3.3 W
