Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

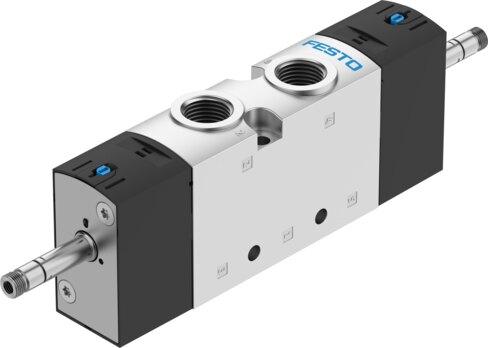

Reference imageConfirm configuration by manufacturer part number.
Festo
8036729
Air solenoid valve VUVS-LT30-T32C-MD-N38-F8
The Festo 8036729 is a piloted industrial component featuring a 2x3/2 closed, monostable valve function and a 31 mm valve size with a nominal width of 7.9 mm. Utilizing a plate seat structural design and a soft sealing principle, it delivers a normal nominal flow rate of 1600 l/min through 3/8 NPT pneumatic working ports across an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar). This c UL us-recognized unit includes both detenting and non-detenting manual overrides, an adjustable exhaust air function, internal pilot air supply, and a mechanical spring reset method, with operating voltage applied via a separately ordered solenoid coil. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8036729
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8036729.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- 3/8 NPT
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Nominal width
- 7.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.4
- C value
- 6 l/sbar
- Switching time off
- 33 ms
- On switching time
- 13 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 3600 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8036729. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
