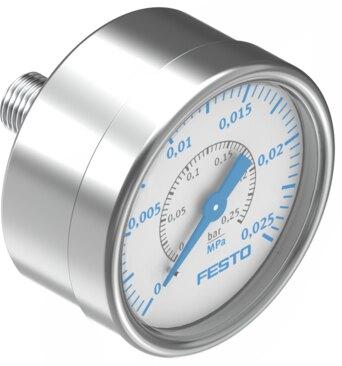

Reference imageConfirm configuration by manufacturer part number.
Festo
8036756
Pressure gauge PAGN-63-0.025M-G14-1.6
The Festo 8036756 is a Bourdon tube pressure gauge featuring a nominal size of 63 and a display range of 0 MPa to 0.025 MPa, conforming to EN 837-1 standards with measurement accuracy class 1.6. Built with a centered rear G1/4 pneumatic connection and brass media-contacting components and screwed plug, this in-line mounted device operates within a medium and ambient temperature range of -20 °C to 60 °C for inert gases and neutral liquids excluding acetylene and oxygen. The unit provides IP43 protection, an intermittent load factor of 0.66, RoHS-compliant materials, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8036756
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8036756.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 MPa...0.025 MPa
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 63
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.025 MPa | 0 bar...0.25 bar | 0 psi...3.625 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1.6
- Degree of protection
- IP43
- Storage temperature
- -40 °C...70 °C
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
- Inspection window material
- PS
- Housing colour
- Black
- Product weight
- 220 g
- Scale
- Double scale
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8036756. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
