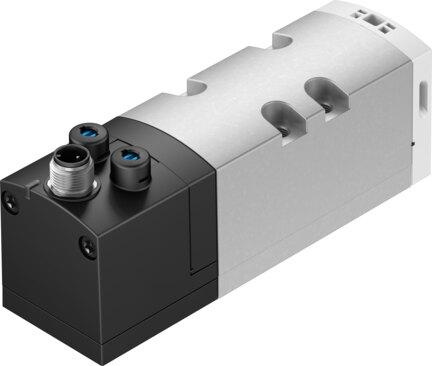

Name: Festo 8037117 Solenoid valve VSVA-B-TR1-B52-ZD-D1-1R5L
Brand: Festo

Solenoid valve VSVA-B-TR1-B52-ZD-D1-1R5L

The Festo 8037117 is an electrically actuated 5/2-way bistable industrial component featuring a piston gate valve structural design and a nominal width of 11 mm. This 42 mm wide piloted valve conforms to ISO 5599-1 with an operating voltage of 24V DC, a normal nominal flow rate of 1300 l/min, and an operating pressure range from -0.09 MPa to 1.6 MPa. It provides IP65 and NEMA 4 degrees of protection, features both detenting and non-detenting manual override, and carries CE and UKCA markings for EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8037117
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8037117.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 42 mm
Normal nominal ow rate (normalized to DIN 1343): 1300 l/min
Pneumatic working port: Sub-base, size 1 according to ISO 5599-1 | G1/4
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | NEMA 4
Nominal width: 11 mm
Width dimension: 43 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Any
Lap: Positive overlap
Signal status display: LED
Pilot pressure MPa: 0.3 MPa...1 MPa
Pilot pressure: 3 bar...10 bar

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8037117. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
