Festo
8037654

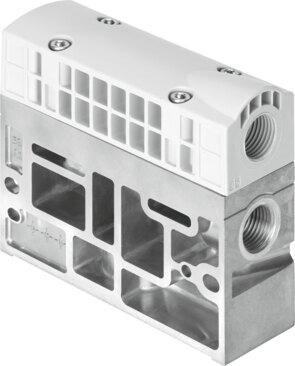

Supply plate VABF-S1-1-P1A12-N12
The Festo 8037654 is an industrial component designed with a width of 44 mm and a maximum of 1 valve position based on the ISO 5599-1 norm, featuring adjustable exhaust air function and vacuum suitability. It operates at pressures from -0.09 MPa to 1.6 MPa (-0.9 bar to 16 bar) using compressed air according to ISO 8573-1:2010 [7:4:4], with a product weight of 650 g and 1/2 NPT pneumatic connections 1, 3, and 5. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8037654
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8037654.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Max. no. of valve positions
- 1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 650 g
- Pneumatic connection 1
- 1/2 NPT
- Pneumatic connection 3
- 1/2 NPT
- Pneumatic connection 5
- 1/2 NPT
- Exhaust plate material
- PA
- Note on materials
- RoHS compliant
- Supply plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8037654. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
