Festo
8037970

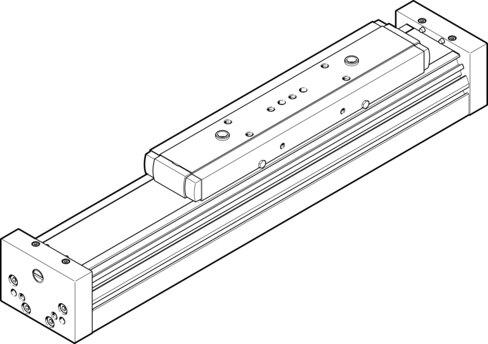

Guide axis ELFA-KF-70- -
The Festo industrial component, part number 8037970, features a size 70 structural guide design with a recirculating ball bearing guide and a working stroke range of 50 mm to 5000 mm for any mounting position. It achieves a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a 100% duty cycle within an ambient temperature range of -10 °C to 60 °C. Operating with an IP40 degree of protection, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity, the unit handles a maximum force Fy of 1500 N, a maximum force Fz of 1850 N, and maximum torques Mx, My, and Mz of 16 Nm, 132 Nm, and 132 Nm respectively. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8037970
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8037970.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...5000 mm
- Size
- 70
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 146050 mm⁴
- 2nd moment of area Iz
- 459290 mm⁴
- Max. force Fy
- 1500 N
- Max. force Fz
- 1850 N
- Max. no-load resistance to shifting
- 11 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 132 Nm
- Max. torque Mz
- 132 Nm
- Max. force Fy total axis
- 1500 N
- Max. force Fz total axis
- 1850 N
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 132 Nm
- Max. moment Mz total axis
- 132 Nm
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 5520 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6808 N
- Mx with theoretical service life of 100 km (from a guide perspective
- 59 Nm
- My with theoretical service life of 100 km (from a guide perspective
- 486 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8037970. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
