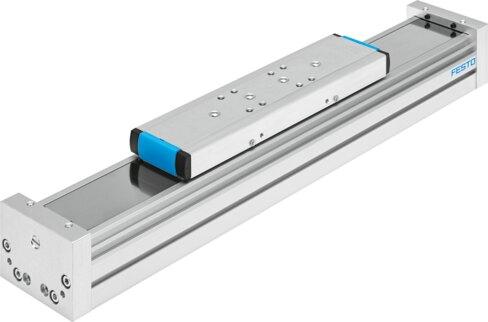

Reference imageConfirm configuration by manufacturer part number.
Festo
8037971
Guide axis ELFA-KF-80- -
Festo Guide axis ELFA-KF-80- -, part number 8037971, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8037971
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8037971.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Working stroke
- 50 mm...8500 mm
- Size
- 80
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 257180 mm⁴
- 2nd moment of area Iz
- 913660 mm⁴
- Max. force Fy
- 2500 N
- Max. force Fz
- 3050 N
- Max. no-load resistance to shifting
- 12 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 228 Nm
- Max. torque Mz
- 228 Nm
- Max. force Fy total axis
- 2500 N
- Max. force Fz total axis
- 3050 N
- Max. moment Mx total axis
- 36 Nm
- Max. moment My total axis
- 228 Nm
- Max. moment Mz total axis
- 228 Nm
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 9200 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11224 N
- Mx with theoretical service life of 100 km (from a guide perspective
- 132 Nm
- My with theoretical service life of 100 km (from a guide perspective
- 839 Nm
