Festo
8037972

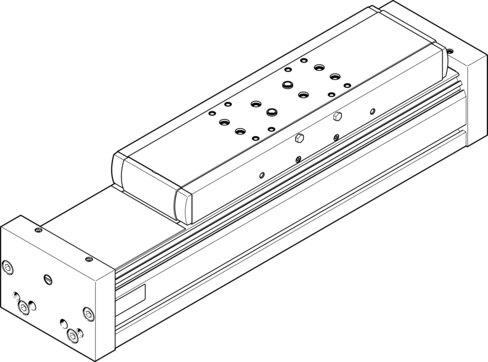

Guide axis ELFA-KF-120- -
The Festo size 120 industrial component features a structural guide design with a recirculating ball bearing guide and an adjustable working stroke ranging from 50 mm to 8500 mm for any mounting position. It operates at a 100% duty cycle, supporting a maximum speed of 5 m/s, maximum acceleration of 50 m/s², and ambient temperatures between -10 °C and 60 °C with an IP40 degree of protection. The unit delivers a maximum force Fy of 5500 N, maximum force Fz of 6890 N, and maximum torques of 104 Nm for Mx, 680 Nm for My, and 680 Nm for Mz, alongside 2nd moments of area Iy at 1264580 mm⁴ and Iz at 4365790 mm⁴. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8037972
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8037972.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...8500 mm
- Size
- 120
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 1264580 mm⁴
- 2nd moment of area Iz
- 4365790 mm⁴
- Max. force Fy
- 5500 N
- Max. force Fz
- 6890 N
- Max. no-load resistance to shifting
- 23 N
- Max. torque Mx
- 104 Nm
- Max. torque My
- 680 Nm
- Max. torque Mz
- 680 Nm
- Max. force Fy total axis
- 5500 N
- Max. force Fz total axis
- 6890 N
- Max. moment Mx total axis
- 104 Nm
- Max. moment My total axis
- 680 Nm
- Max. moment Mz total axis
- 680 Nm
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 20240 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25355 N
- Mx with theoretical service life of 100 km (from a guide perspective
- 383 Nm
- My with theoretical service life of 100 km (from a guide perspective
- 2502 Nm
