Festo
8039187

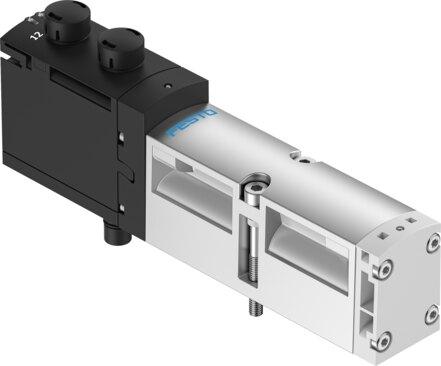

Air solenoid valve VSVA-B-P53BD-ZTR-A1-1T1L
The Festo part number 8039187 is an electrical piston gate valve featuring a 5/3 valve function with connection 4 pressurized and 2 exhausted, measuring 26 mm in width with a nominal width of 9 mm. This component delivers a normal nominal flow rate of 850 l/min through a soft sealing principle and an ISO 15407-1 size 26 mm or G1/4 pneumatic working port, operating at 24V DC across a pressure range of -0.09 MPa to 1 MPa. It is built with an IP65 and NEMA 4 degree of protection, external pilot air supply port, piloted control, and carries CSA and c UL us recognized certifications. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8039187
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8039187.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, connection 4 pressurized, 2 exhausted
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 850 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Electrical actuation
- Certication
- CSA (OL) | c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve on individual sub-base
- 900 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 950 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8039187. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
