Festo
8039188

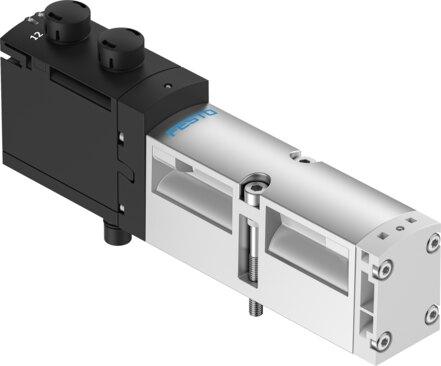

Air solenoid valve VSVA-B-P53BD-ZH-A1-1T1L
The Festo 8039188 is a 26 mm wide industrial component featuring a 5/3 valve function with connection 4 pressurized and 2 exhausted, operating via electrical actuation and a 24V DC operating voltage. Utilizing a piston gate valve structural design with a soft sealing principle, this piloted unit delivers a normal nominal flow rate of 850 l/min across an operating pressure range of -0.09 MPa to 1 MPa. It achieves an IP65 and NEMA 4 degree of protection, incorporates a non-detenting manual override, and carries CSA and cULus recognized certifications. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8039188
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8039188.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, connection 4 pressurized, 2 exhausted
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 850 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Electrical actuation
- Certication
- CSA (OL) | c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve on individual sub-base
- 900 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 950 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 850 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8039188. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
