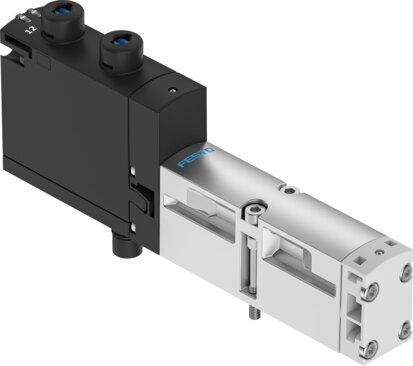

Reference imageConfirm configuration by manufacturer part number.
Festo
8039191
Air solenoid valve VSVA-B-P53EP-ZH-A2-1T1L
The Festo 8039191 is an electrical 5/3 exhausted piston gate valve featuring a 18 mm width, a nominal width of 5 mm, and a normal nominal flow rate of 380 l/min normalized to DIN 1343. Operating at 24V DC across a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted component incorporates a soft sealing principle, positive overlap, mechanical spring and electrical reset methods, and a non-detenting manual override. It provides IP65 and NEMA 4 protection, an LED signal status display, an external pilot air supply port, and sub-base G1/8 pneumatic working ports sized at 18 mm as per ISO 15407-1 with adjustable exhaust air function via a throttle plate or individual sub-base. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8039191
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8039191.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 380 l/min
- Pneumatic working port
- Sub-base, size 18 mm as per ISO 15407-1 | G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Electrical actuation
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve on individual sub-base
- 390 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 460 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 380 l/min
- Asymmetrical switching time off
- 30 ms for control side 14
