Festo
8039821

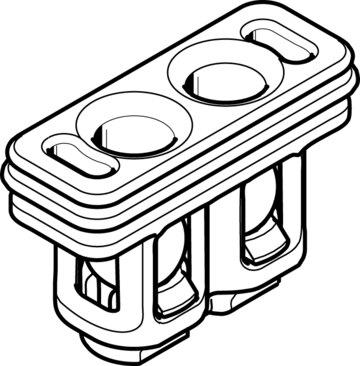

Non return valve VMPA2-RV
The Festo 8039821 is an industrial component featuring an unlockable check valve function and pneumatic actuation with a nominal flow rate of 330 l/min. Housed in POM with a corrosion resistance class of 4 for particularly high corrosion stress, this part operates within a pressure range of 0.5 bar to 8 bar and ambient temperatures from -5 °C to 50 °C using compressed air per ISO 8573-1:2010 [7:4:4]. It supports any mounting position via a clip-type installation and permits operation with oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8039821
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8039821.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Unlockable check valve function
- Actuation type
- Pneumatic
- Type of mounting
- Clip
- Normal nominal ow rate (normalized to DIN 1343)
- 330 l/min
- Operating pressure
- 0.05 MPa...0.8 MPa | 0.5 bar...8 bar
- Pilot pressure MPa
- 0.05 MPa...0.8 MPa
- Pilot pressure
- 0.5 bar...8 bar
- Pilot pressure psi
- 7.25 psi...116 psi
- Ambient temperature
- -5 °C...50 °C
- Housing material
- POM
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position
- Any
- Actuation type, piloted non-return function
- Pneumatic
- Operating pressure for entire temperature range
- 0.5 bar...8 bar
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...40 °C
- Temperature of medium
- -5 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight
- 0.19 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8039821. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
