Festo
8040111

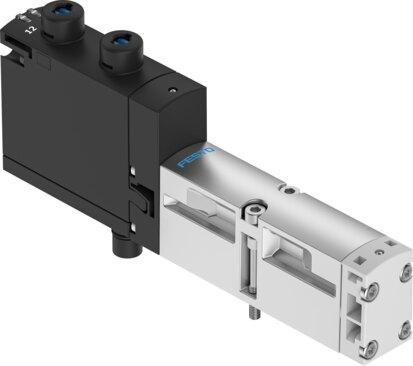

Air solenoid valve VSVA-B-P53BD-ZH-A2-1T1L
The Festo 8040111 is a 5/3 electrical actuation industrial component featuring a piston gate valve structure with connection 4 pressurized and 2 exhausted. This piloted valve operates on 24V DC within an operating pressure range of -0.09 MPa to 1 MPa, delivering a normal nominal flow rate of 370 l/min through a 5 mm nominal width and 18 mm width. Featuring IP65 and NEMA 4 degrees of protection, soft sealing principle, non-detenting manual override, and c UL us recognition, it mounts in any position with an external pilot air supply port and adjustable exhaust air function. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8040111
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040111.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3, connection 4 pressurized, 2 exhausted
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 370 l/min
- Pneumatic working port
- Sub-base, size 18 mm as per ISO 15407-1 | G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Electrical actuation
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 5 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve on individual sub-base
- 400 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 430 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8040111. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
