Festo
8040447
Connecting cable NEBC-D12G4-ES-1-S-D12G4-ET
Festo Connecting cable NEBC-D12G4-ES-1-S-D12G4-ET, part number 8040447, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8040447
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040447.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E520706
- Cable designation
- With label holder
- Contact durability
- 100
- Product weight
- 98.5 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

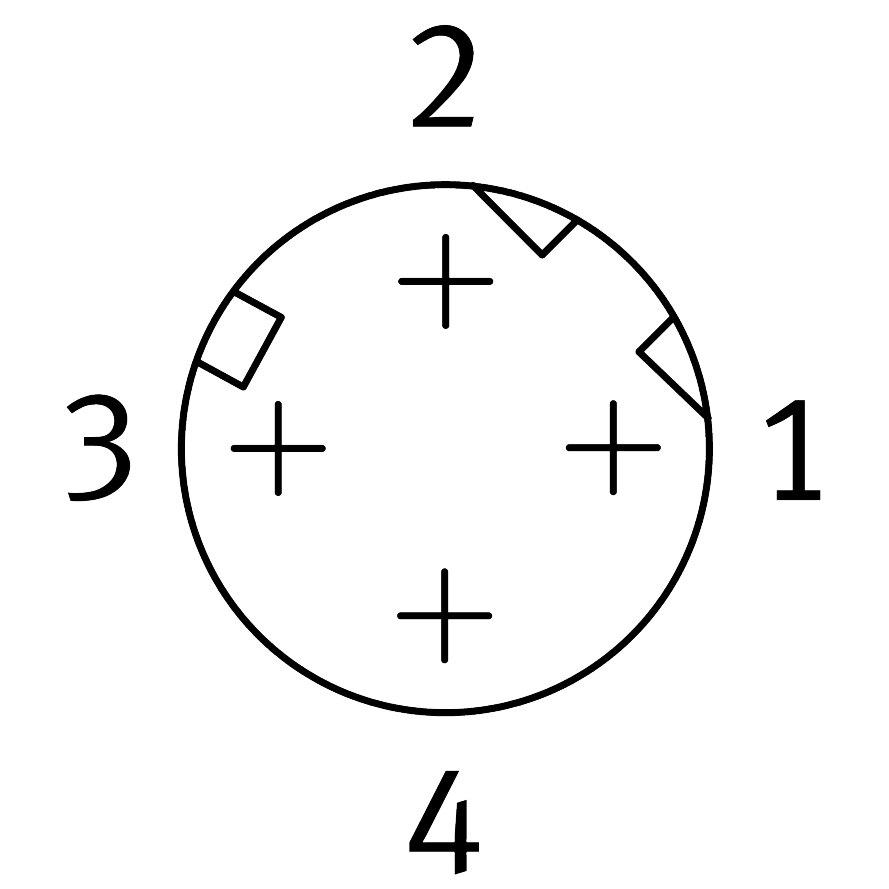

- M12x1, D-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1, D-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon AF 13 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- DC operating voltage range
- 0 V...60 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Current rating
- 4 A
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Transmission characteristics
- According to category 5, ISO/IEC 11801, class D
