Festo
8040448
Connecting cable NEBC-D12G4-ES-3-S-D12G4-ET
This Festo industrial component, part number 8040448, is a c UL us-listed unit certified under UL E520706 with a product weight of 211 g and a contact durability of 100. It features straight, round M12x1 D-coded electrical connections on both the field device and control sides, each equipped with four occupied pins and a cable designation including a label holder. Electrical connection 1 utilizes a screw-type lock with hexagon AF13, vertical knurling, and rotatable mounting compatible with rotatable and non-rotatable screw-type locks. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8040448
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040448.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E520706
- Cable designation
- With label holder
- Contact durability
- 100
- Product weight
- 211 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

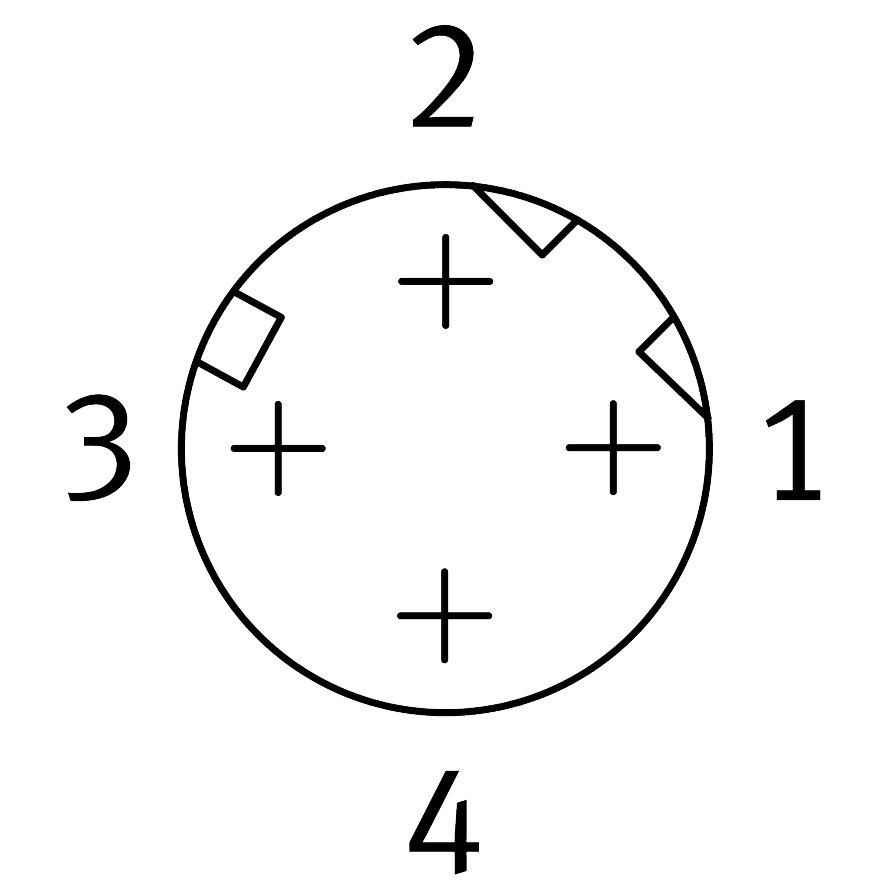

- M12x1, D-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1, D-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon AF 13 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- DC operating voltage range
- 0 V...60 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Current rating
- 4 A
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Transmission characteristics
- According to category 5, ISO/IEC 11801, class D
