Festo
8040449
Connecting cable NEBC-D12G4-ES-5-S-D12G4-ET
The Festo part number 8040449 is an industrial component weighing 331.5 g and featuring c UL us - Listed (OL) certification under authority UL E520706. This assembly includes a label holder, a contact durability rating of 100, and straight M12x1 D-coded 4-pin plugs on both the field device and control sides conforming to EN 61076-2-101. Electrical connection 1 utilizes a rotatable screw-type lock with hexagon AF13 and vertical knurling compatible with rotatable and non-rotatable screw-type locks. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8040449
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040449.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E520706
- Cable designation
- With label holder
- Contact durability
- 100
- Product weight
- 331.5 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

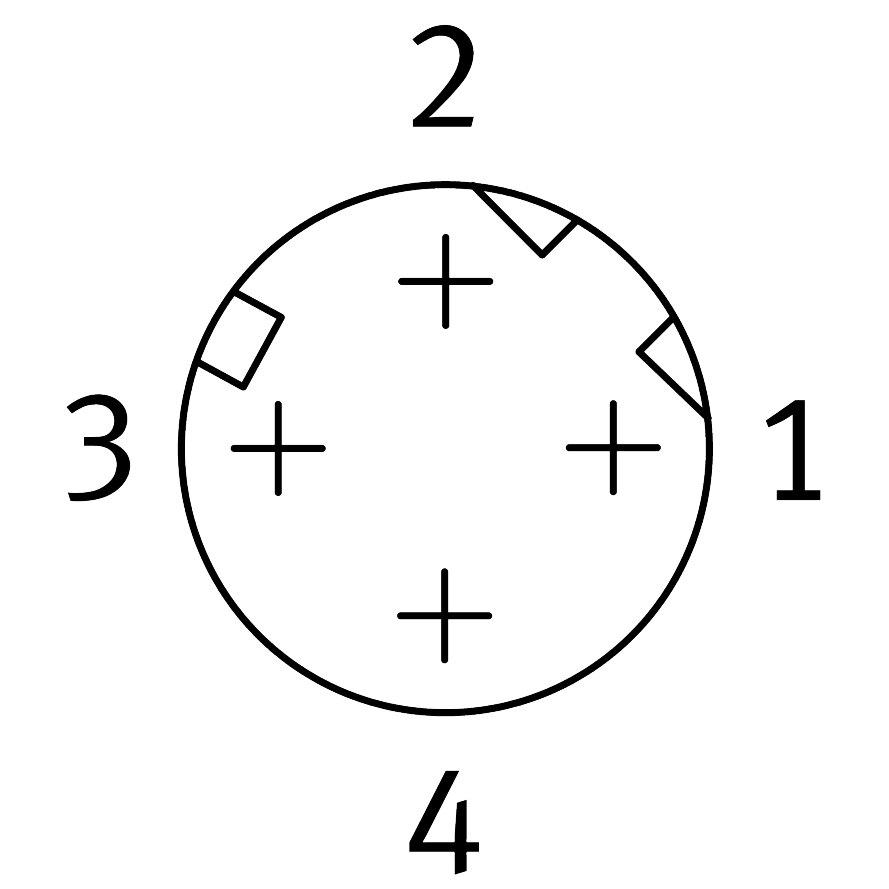

- M12x1, D-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1, D-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon AF 13 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- DC operating voltage range
- 0 V...60 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Current rating
- 4 A
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Transmission characteristics
- According to category 5, ISO/IEC 11801, class D
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8040449. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
