8040450

Name: Festo 8040450 Connecting cable NEBC-D12G4-ES-10-S-D12G4-ET
Brand: Festo

Connecting cable NEBC-D12G4-ES-10-S-D12G4-ET

This Festo industrial component, part number 8040450, features a weight of 680 g and includes a cable designation with a label holder. It is c UL us - Listed under UL certificate issuing authority E520706 and offers a contact durability of 100. Electrical connection 1 on the field device side utilizes a straight, 4-pin, 4-occupied-wire M12x1 round plug (D-coded as per EN 61076-2-101) with a screw-type lock featuring a hexagon AF13, vertical knurling, and rotatable mounting compatible with rotatable and non-rotatable locks. Electrical connection 2 on the control side matches this configuration with a straight, 4-pin, 4-occupied-wire M12x1 round plug (D-coded as per EN 61076-2-101). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8040450
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8040450.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c UL us - Listed (OL)
Certicate issuing authority: UL E520706
Cable designation: With label holder
Contact durability: 100
Product weight: 680 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight

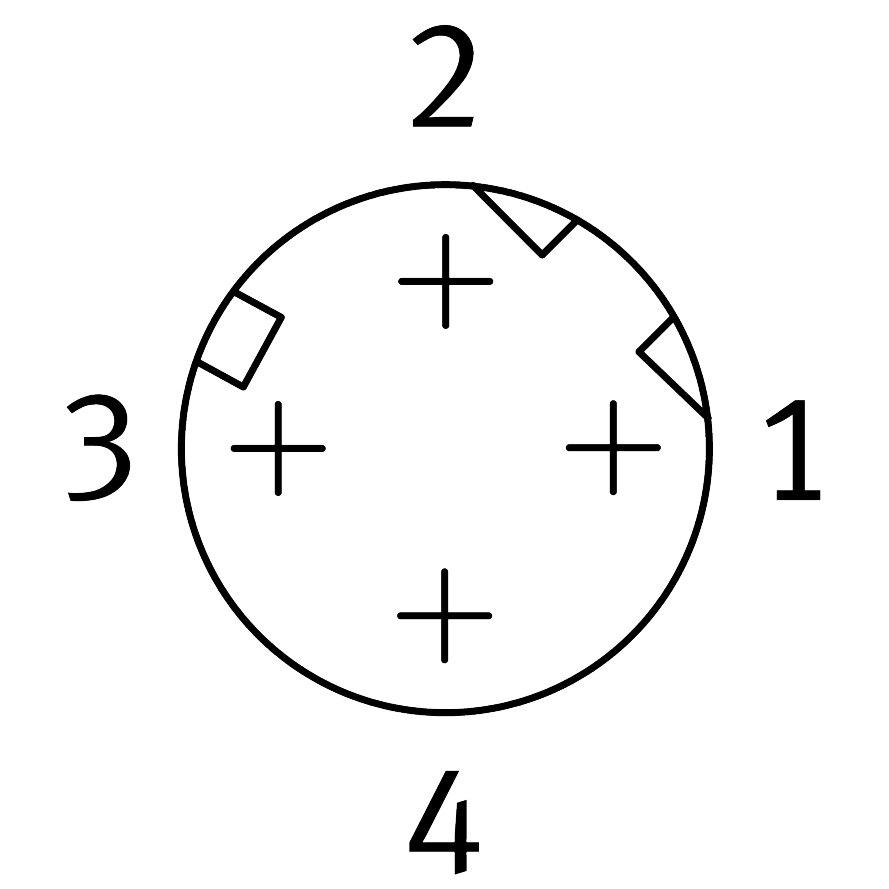

Electrical connection 1, connection technology: M12x1, D-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M12x1, D-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, occupied pins/wires: 4
Electrical connection 2, type of mounting: Screw-type lock with hexagon AF 13 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
DC operating voltage range: 0 V...60 V
Note on operating voltage range DC: 0 - 30 V for UL applications
Current rating: 4 A
Surge resistance: 1.5 kV
Shield: Yes
Transmission characteristics: According to category 5, ISO/IEC 11801, class D
