Name: Festo 8040451 Connecting cable NEBC-D12G4-ES-1-S-R3G4-ET
Brand: Festo

Connecting cable NEBC-D12G4-ES-1-S-R3G4-ET

This Festo industrial component, part number 8040451, is a c UL us-listed (OL) assembly certified under UL E520706 with a product weight of 93.5 g and an integrated label holder. The field device side features a straight round M12x1 D-coded plug per EN 61076-2-101 with 4 pins, a rotatable screw-type lock with hexagon AF13 and vertical knurling, and a contact durability of 100 mating cycles. The control side utilizes a straight square RJ45 plug per IEC 60603-7-3 with 8 pins and a contact durability of 750 mating cycles. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8040451
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8040451.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c UL us - Listed (OL)
Certicate issuing authority: UL E520706
Cable designation: With label holder
Contact durability: 100 | 750
Note on contact durability: 100 (electrical connection 1) | 750 (electrical connection 2)
Product weight: 93.5 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight

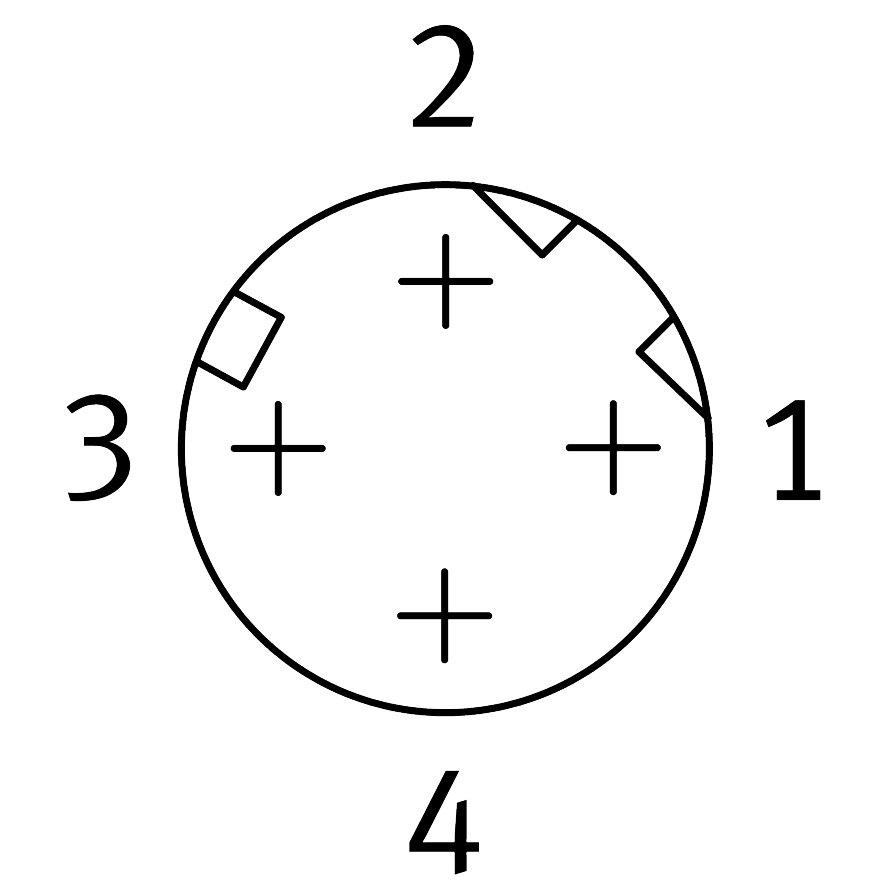

Electrical connection 1, connection technology: M12x1, D-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, design: Square
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: RJ45 as per IEC 60603-7-3
Electrical connection 2, number of pins/wires: 8
Electrical connection 2, occupied pins/wires: 4
Electrical connection 2, type of mounting: Snap-locking | Compatible with snap-locking
DC operating voltage range: 0 V...60 V
Note on operating voltage range DC: 0 - 30 V for UL applications
Current rating: 1.5 A
Surge resistance: 0.8 kV
