Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8040453
Connecting cable NEBC-D12G4-ES-5-S-R3G4-ET
The Festo 8040453 industrial component features an M12x1 D-coded 4-pin round plug for the field device side and an RJ45 8-pin square plug for the control side, both utilizing straight cable outlets. This c UL us-listed product (UL E520706) incorporates a screw-type lock with hexagon AF13 and vertical knurling on electrical connection 1, offering a contact durability rating of 100 cycles on connection 1 and 750 cycles on connection 2 alongside an integrated label holder and a total product weight of 350 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8040453
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040453.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E520706
- Cable designation
- With label holder
- Contact durability
- 100 | 750
- Note on contact durability
- 100 (electrical connection 1) | 750 (electrical connection 2)
- Product weight
- 350 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

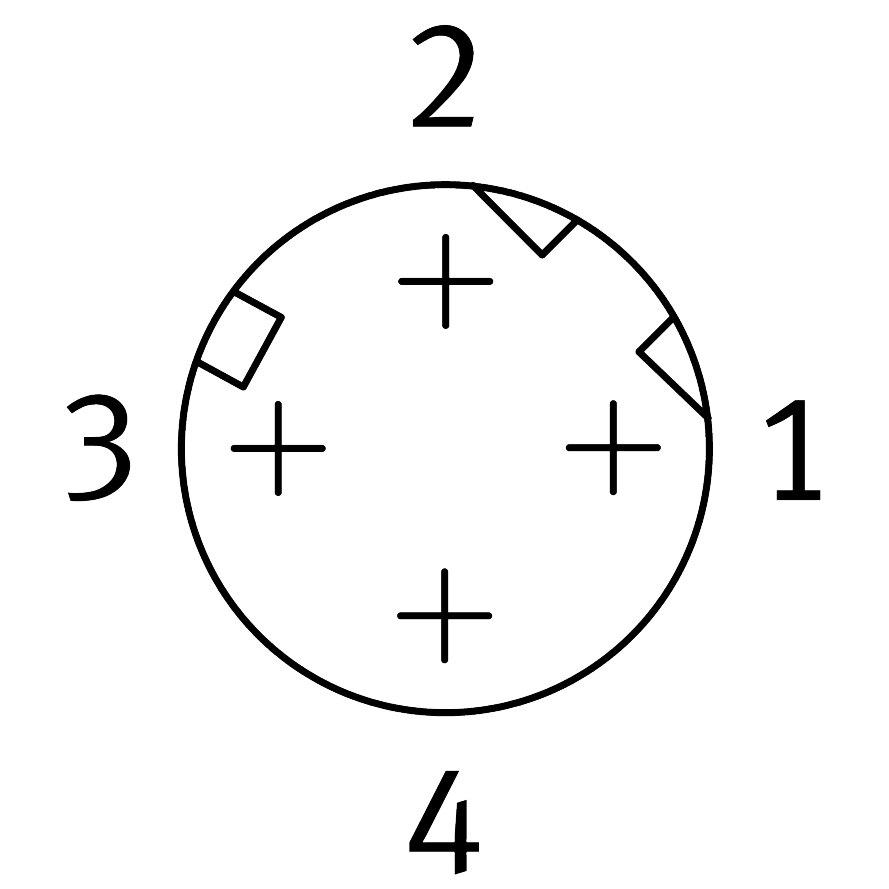

- M12x1, D-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Snap-locking | Compatible with snap-locking
- DC operating voltage range
- 0 V...60 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Current rating
- 1.5 A
- Surge resistance
- 0.8 kV
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8040453. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
