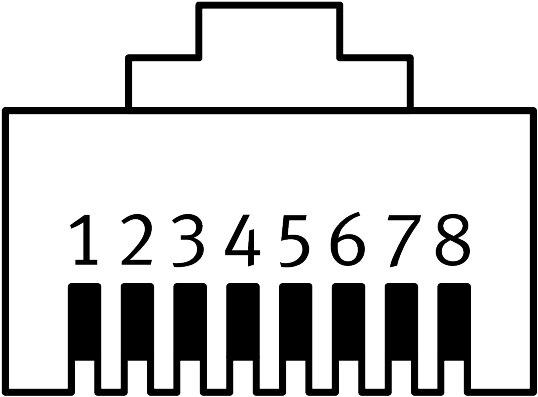

Reference imageConfirm configuration by manufacturer part number.
Festo
8040455
Connecting cable NEBC-R3G4-ES-1-S-R3G4-ET
This Festo industrial component, part number 8040455, features straight RJ45 connections conforming to IEC 60603-7-3 on both the field device and control sides. Weighing 89.5 g, the assembly includes 8-pin square plugs with 4 occupied pins, snap-locking mounting, a label holder cable designation, and a contact durability rating of 750 cycles. It holds c UL us - Listed (OL) certification under issuing authority UL E520706. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8040455
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040455.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E520706
- Cable designation
- With label holder
- Contact durability
- 750
- Product weight
- 89.5 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking | Compatible with snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Snap-locking | Compatible with snap-locking
- DC operating voltage range
- 0 V...60 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Current rating
- 1.5 A
- Surge resistance
- 0.8 kV
- Shield
- Yes
- Transmission characteristics
- According to category 5, ISO/IEC 11801, class D
- Cable length
- 1 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Flexural strength: as per Festo standard
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8040455. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
