8040456

Name: Festo 8040456 Connecting cable NEBC-LE4-ES-5-D12G4-ET
Brand: Festo

Connecting cable NEBC-LE4-ES-5-D12G4-ET

This Festo industrial component, part number 8040456, features a cable designation with a label holder and a product weight of 343 g with a contact durability of 100. The first electrical connection is on the field device side, utilizing a straight cable outlet with an open end, four pins, and four occupied wires supporting a DC operating voltage range from 0 V to 60 V. Connection 2 is on the control side, featuring a straight round plug with M12x1 D-coded connection technology as per EN 61076-2-101, four pins, four occupied wires, and a rotatable screw-type lock with hexagon AF 13 and longitudinal knurl that is compatible with rotatable and non-rotatable screw-type locks. Certified c UL us - Listed (OL) by UL E520706, this assembly is ready for procurement. Submit your exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8040456
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8040456.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c UL us - Listed (OL)
Certicate issuing authority: UL E520706
Cable designation: With label holder
Contact durability: 100
Product weight: 343 g
Electrical connection 1, function: Field device side
Electrical connection 1, connection type: Cable
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: Open end
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 4
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight

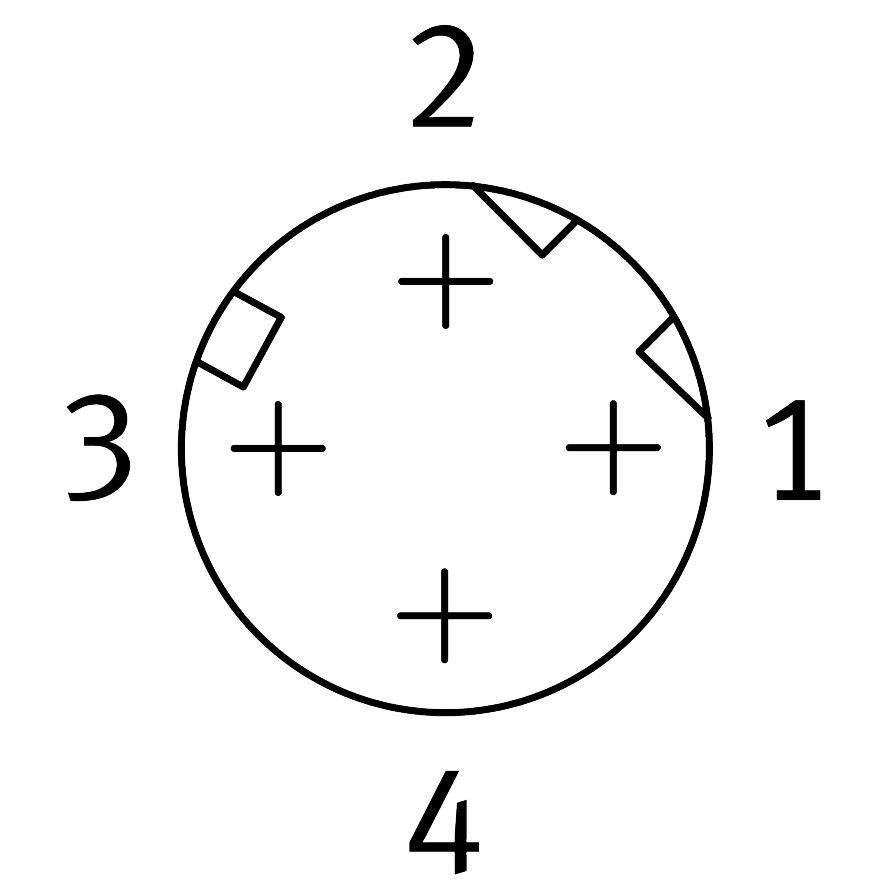

Electrical connection 2, connection technology: M12x1, D-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, occupied pins/wires: 4
Electrical connection 2, type of mounting: Screw-type lock with hexagon AF 13 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
DC operating voltage range: 0 V...60 V
Note on operating voltage range DC: 0 - 30 V for UL applications
Current rating: 4 A
Surge resistance: 1.5 kV
Shield: Yes
Transmission characteristics: According to category 5, ISO/IEC 11801, class D
Cable length: 5 m
Cable characteristic: Suitable for energy chains
Connector cable test conditions: Flexural strength: as per Festo standard | Test conditions on request
