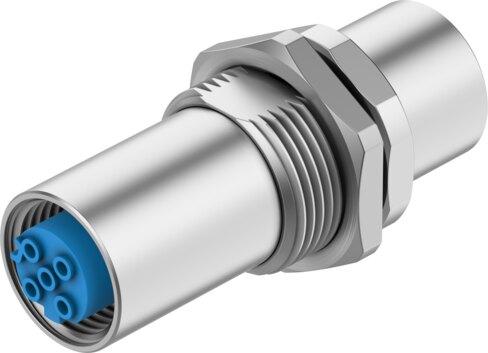

Name: Festo 8040459 Cabinet through-feed NEFU-D12G4-D12DG4
Brand: Festo

Cabinet through-feed NEFU-D12G4-D12DG4

The Festo 8040459 industrial component is an M12x1 straight socket featuring a 4-pin D-coded configuration on both electrical connections with a 0 V to 30 V DC operating voltage range and a 4 A current rating at 40 °C. Constructed with a nickel-plated brass housing, gold-plated brass pin contacts, and IP65 and IP67 protection ratings, this unit conforms to EN 61076-2-101 and operates within an ambient temperature range of -25 °C to 85 °C. It supports category 5 transmission characteristics under EN 50173 and ISO/IEC 11801 class D, maintains a 0.8 kV surge resistance, and complies with RoHS and VDMA24364 Zone III LABS standards. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8040459
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8040459.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101
Type of mounting: Screwed on
Electrical connection 1: Straight socket, M12x1, 4-pin, D-coded
Electrical connection 2: Straight socket, M12x1, 4-pin, D-coded
DC operating voltage range: 0 V...30 V
Current rating at 40° C: 4 A
Surge resistance: 0.8 kV
Transmission characteristics: In accordance with category 5, EN 50173, class D | According to category 5, ISO/IEC 11801, class D
Degree of protection: IP65 | IP67
Ambient temperature: -25 °C...85 °C
LABS (PWIS) conformity: VDMA24364 Zone III
Note on materials: RoHS compliant
Contamination level: 3
Corrosion resistance class (CRC): 1 - Low corrosion stress
Housing material: Brass, nickel-plated
Housing colour: Silver
Material of pin contacts: Brass | Gold-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8040459. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
