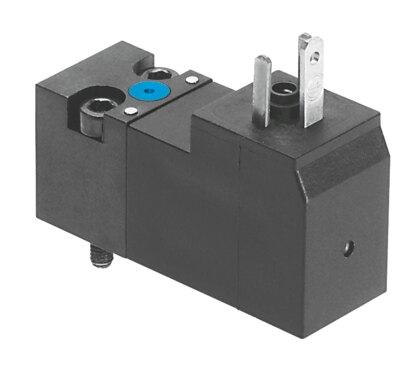

Reference imageConfirm configuration by manufacturer part number.
Festo
8040570
Air solenoid valve VSCS-B-M32-MD-WA-1C1-8
The Festo 8040570 is a directly controlled 3/2-way closed monostable industrial component featuring a 15 mm width and a normal nominal flow rate of 13.5 l/min according to DIN 1343. Operating at 24V DC with an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, or 21.75 psi to 116 psi), this unit utilizes a soft sealing principle, mechanical spring reset, and features both detenting and non-detenting manual overrides. Conforming to ISO 15218 with an IP65 degree of protection, the device supports any mounting position, a 100% duty cycle, an 8 ms switch-on time, and a 6 ms switch-off time. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8040570
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040570.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 15 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 13.5 l/min
- Pneumatic working port
- Sub-base, size 15 mm according to ISO 15218
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15218
- Manual override
- Detenting | Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Switching time off
- 6 ms
- On switching time
- 8 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 1.3 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
