Festo
8040573

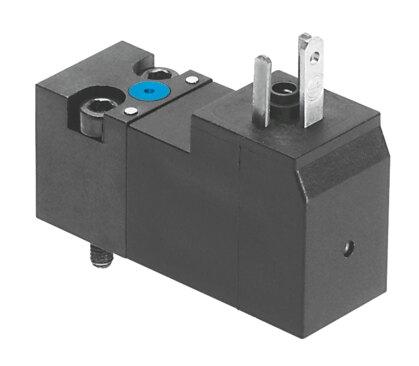

Air solenoid valve VSCS-B-M32-MD-WA-2AC1-8
The Festo 8040573 is an electrical 3/2-way closed, monostable industrial component featuring a 15 mm width, a normal nominal flow rate of 13.5 l/min, and a 110V AC operating voltage. This directly controlled valve incorporates a soft sealing principle, negative overlap lap, non-reversible flow direction, and a mechanical spring reset method supporting both detenting and non-detenting manual override. Rated to IP65 protection and compliant with ISO 15218 standards, the unit operates within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar / 21.75 psi to 116 psi) with an off switching time of 20 ms. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8040573
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8040573.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 15 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 13.5 l/min
- Pneumatic working port
- Sub-base, size 15 mm according to ISO 15218
- Operating voltage
- 110V AC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Degree of protection
- IP65
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15218
- Manual override
- Detenting | Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Switching time off
- 20 ms
- On switching time
- 8 ms
- Duty cycle
- 100%
- Coil characteristics
- 110 V AC: 50/60 Hz, initial power 2.0 VA, holding power 1.5 VA
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8040573. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
