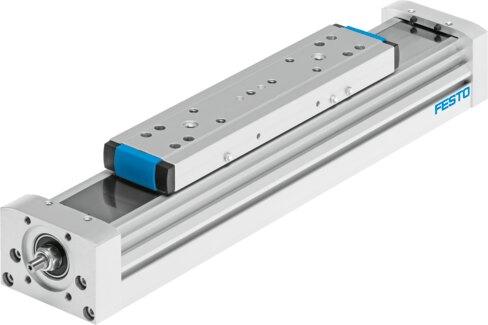

Reference imageConfirm configuration by manufacturer part number.
Festo
8041841
Ball screw axis ELGA-BS-KF-120-600-0H-10P-ML
The Festo 8041841 is an electromechanical linear axis featuring a ball screw structural design with a size 120 profile and a 600 mm working stroke. Driven by either a stepper or servo motor, this component achieves a maximum speed of 0.6 m/s, a max rotational speed of 3600 rpm, and a repetition accuracy of ±0.02 mm across a 100% duty cycle. Configured with a recirculating ball bearing guide, an incremental linear potentiometer, a 25 mm screw diameter, and a 10 mm/U spindle pitch, it operates within an ambient temperature range of -10 °C to 60 °C under an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8041841
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8041841.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 600 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Screw diameter
- 25 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 3600 rpm
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 1240000 mm⁴
- 2nd moment of area Iz
- 3800000 mm⁴
- No-load torque at maximum travel speed
- 1.33 Nm
- No-load torque at minimum travel speed
- 1 Nm
- Max. force Fy
- 5500 N
- Max. force Fz
- 6890 N
- Max. force Fy total axis
- 5500 N
- Max. force Fz total axis
- 6890 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 20240 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25355 N
- Max. torque Mx
- 104 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8041841. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
