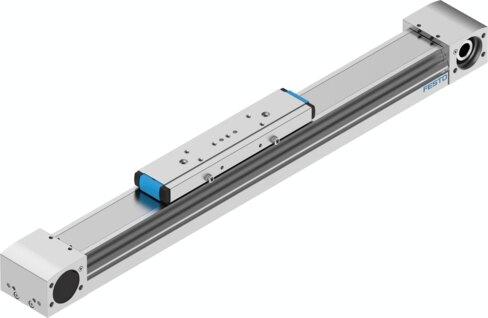

Reference imageConfirm configuration by manufacturer part number.
Festo
8041851
Belt driven linear actuator ELGA-TB-KF-70-300-0H
This Festo electromechanical linear axis features a size 70 structural design with an integrated toothed belt, a 28.65 mm drive pinion effective diameter, a 3 mm toothed belt pitch, a 300 mm working stroke, and a 0 mm stroke reserve. Equipped with a recirculating ball bearing guide and an incremental linear potentiometer measuring principle, it accommodates stepper or servo motors, achieves a max. driving torque of 5.02 Nm, a max. acceleration of 50 m/s², a max. speed of 5 m/s, and a repetition accuracy of ±0.08 mm. The unit operates at a 100% duty cycle within an ambient temperature range of -10 °C to 60 °C, maintains IP40 protection, complies with VDMA24364 Zone III LABS conformity, and provides a 2nd moment of area Iy of 146050 mm⁴ and Iz of 459290 mm⁴ in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8041851
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8041851.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 300 mm
- Size
- 70
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 146050 mm⁴
- 2nd moment of area Iz
- 459290 mm⁴
- Max. driving torque
- 5.02 Nm
- Max. force Fy
- 1500 N
- Max. force Fz
- 1850 N
- Max. force Fy total axis
- 1500 N
- Max. force Fz total axis
- 1850 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 5520 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6808 N
- Max. no-load resistance to shifting
- 41.9 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 132 Nm
- Max. torque Mz
- 132 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8041851. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
