Festo
8041859

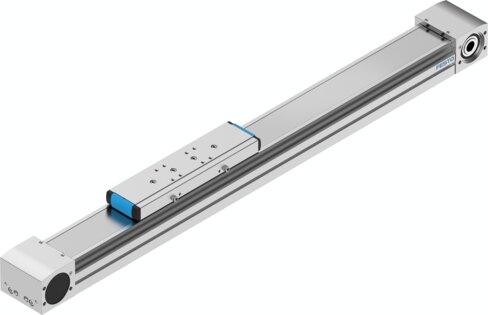

Belt driven linear actuator ELGA-TB-KF-80-500-0H
The Festo 8041859 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 500 mm working stroke, and a size 80 profile equipped with a recirculating ball bearing guide. This component delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.08 mm, and supports compatible stepper or servo motors with a maximum driving torque of 15.92 Nm. Designed for any mounting position with an IP40 protection rating, it operates within an ambient temperature range of -10 °C to 60 °C at a 100% duty cycle. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8041859
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8041859.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 39.79 mm
- Working stroke
- 500 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 257180 mm⁴
- 2nd moment of area Iz
- 913660 mm⁴
- Max. driving torque
- 15.92 Nm
- Max. force Fy
- 2500 N
- Max. force Fz
- 3050 N
- Max. force Fy total axis
- 2500 N
- Max. force Fz total axis
- 3050 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 9200 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11224 N
- Max. no-load resistance to shifting
- 50.3 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 228 Nm
- Max. torque Mz
- 228 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8041859. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
