Festo
8041865

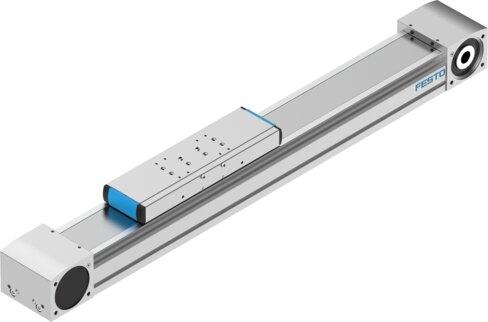

Belt driven linear actuator ELGA-TB-KF-120-500-0H
The Festo 8041865 is an electromechanical linear axis with a toothed belt featuring a size 120 designation, a 500 mm working stroke, and a 0 mm stroke reserve. Driven by a stepper or servo motor, it achieves a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a maximum driving torque of 34.1 Nm, and a repetition accuracy of ±0.08 mm through its recirculating ball bearing guide. Built with an incremental linear potentiometer measuring principle, a 5 mm toothed belt pitch, a 52.52 mm drive pinion effective diameter, and an IP40 degree of protection, the unit operates within an ambient temperature range of -10 °C to 60 °C at a 100% duty cycle in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8041865
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8041865.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 52.52 mm
- Working stroke
- 500 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 1264580 mm⁴
- 2nd moment of area Iz
- 4365790 mm⁴
- Max. driving torque
- 34.1 Nm
- Max. force Fy
- 5500 N
- Max. force Fz
- 6890 N
- Max. force Fy total axis
- 5500 N
- Max. force Fz total axis
- 6890 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 20240 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25355 N
- Max. no-load resistance to shifting
- 76.2 N
- Max. torque Mx
- 104 Nm
- Max. torque My
- 680 Nm
- Max. torque Mz
- 680 Nm
