Festo
8041888

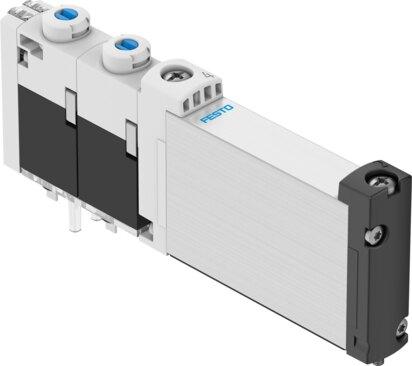

Air solenoid valve VUVG-B10-B52-ZT-F-1T1L-EX2C
The Festo 8041888 is a 10 mm piston gate industrial component featuring a 5/2-way bistable electrical actuation with a piloted control type and external pilot air supply port. Operating at 24V DC with an operating pressure range of -0.9 bar to 10 bar, this valve delivers a normal nominal flow rate of 220 l/min and incorporates an adjustable exhaust air function with a soft sealing principle. Certified as c UL us recognized (OL) and rated IP65/IP67, it includes an LED signal status display, positive overlap lap, reversible flow direction, and both detenting and non-detenting manual override options for any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8041888
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8041888.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 220 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | IP67
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Max. switching frequency
- 3 Hz
- Changeover time
- 9 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse on 1 signal
- 3000 µs
- Coil characteristics
- 22 V DC: 1.0 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
