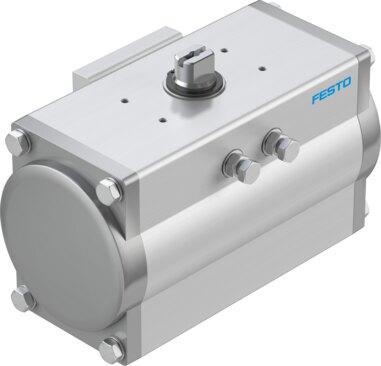

Reference imageConfirm configuration by manufacturer part number.
Festo
8042188
Quarter turn actuator DFPD-120-
The Festo part number 8042188 is an industrial component featuring a gear rack and pinion structural design with a valve actuator size of 120 and a swivel angle of 90 degrees to 180 degrees. It operates with a double-acting or single-acting mode of operation across an operating pressure range of 2 bar to 8 bar, incorporating an ISO 5211 standard valve connection and VDI/VDE 3845 NAMUR compliance. This unit includes a burst pressure rating of 24 bar, adjustable end-positions from -5 degrees to 5 degrees, and certifications for ATEX, UK EX, and EPL Db/Gb explosive atmospheres. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8042188
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8042188.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 120
- Flange hole pattern
- F07 | F0507
- Swivel angle
- 90 deg...180 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 19 mm
- Standard connection for valve
- ISO 5211
- Mounting position
- Any
- Mode of operation
- Double-acting | Single-acting
- Structural design
- Gear rack/pinion
- Closing direction
- Closes to the right | Closes to the left
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- Burst pressure
- 24 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.2 MPa...0.6 MPa | 2 bar...6 bar | 29 psi...87 psi
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
