Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

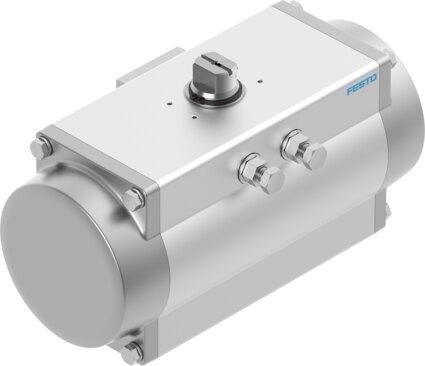

Reference imageConfirm configuration by manufacturer part number.
Festo
8042192
Quarter turn actuator DFPD-480-
The Festo industrial component, part number 8042192, features a gear rack and pinion structural design with a valve actuator size of 480 and an ISO 5211 standard valve connection. This unit supports both double-acting and single-acting modes of operation with a swivel angle ranging from 90 degrees to 180 degrees, an operating pressure of 2 bar to 8 bar, and an F12 or F1012 flange hole pattern. It includes VDI/VDE 3845 NAMUR valve connections, VDI/VDE 3845 Size AA 2 positioner and sensor connection points, and holds ATEX and UK EX certifications alongside maritime classification. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8042192
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8042192.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 480
- Flange hole pattern
- F12 | F1012
- Swivel angle
- 90 deg...180 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 29 mm
- Standard connection for valve
- ISO 5211
- Mounting position
- Any
- Mode of operation
- Double-acting | Single-acting
- Structural design
- Gear rack/pinion
- Closing direction
- Closes to the right | Closes to the left
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 2
- Burst pressure
- 24 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.2 MPa...0.6 MPa | 2 bar...6 bar | 29 psi...87 psi
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8042192. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
